Air Seeder Monitor DJ ASMII

The DICKEY-john® Dj Air Seeder Monitor (Dj ASMII) provides accurate blockage and low-cost monitoring of up to 128 rows and 8 hopper levels. With 16 row indicators per module and a seven-segment display, the DjASM II is user-friendly and precise. It also allows you to add up to eight additional modules and adjust the blockage threshold alarm.

Modular and customizable, the DjASM™ air cart monitor delivers top-level monitoring without draining your budget.

Features and Benefits:

128 row maximum monitoring capability

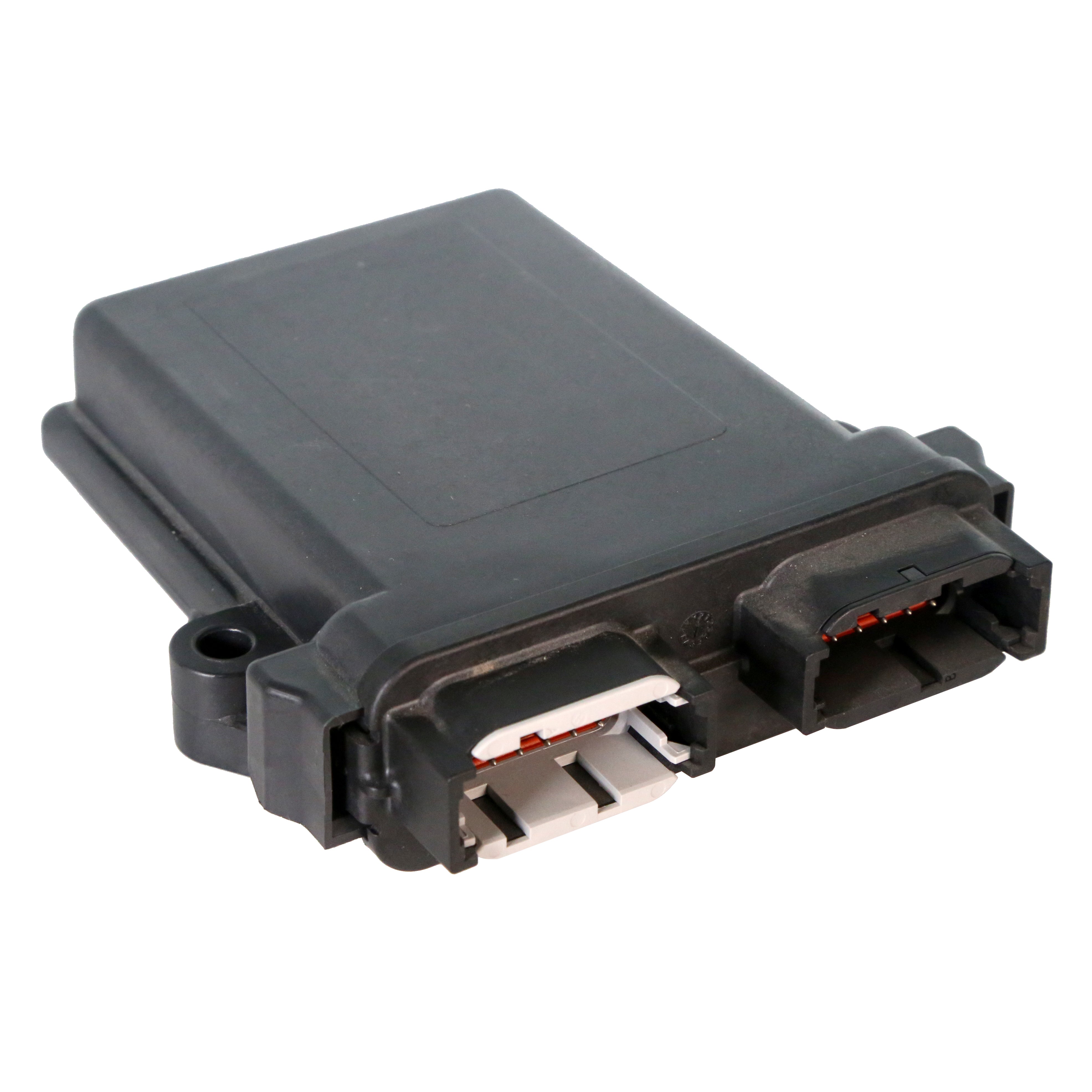

8 ASM II module scanning capability

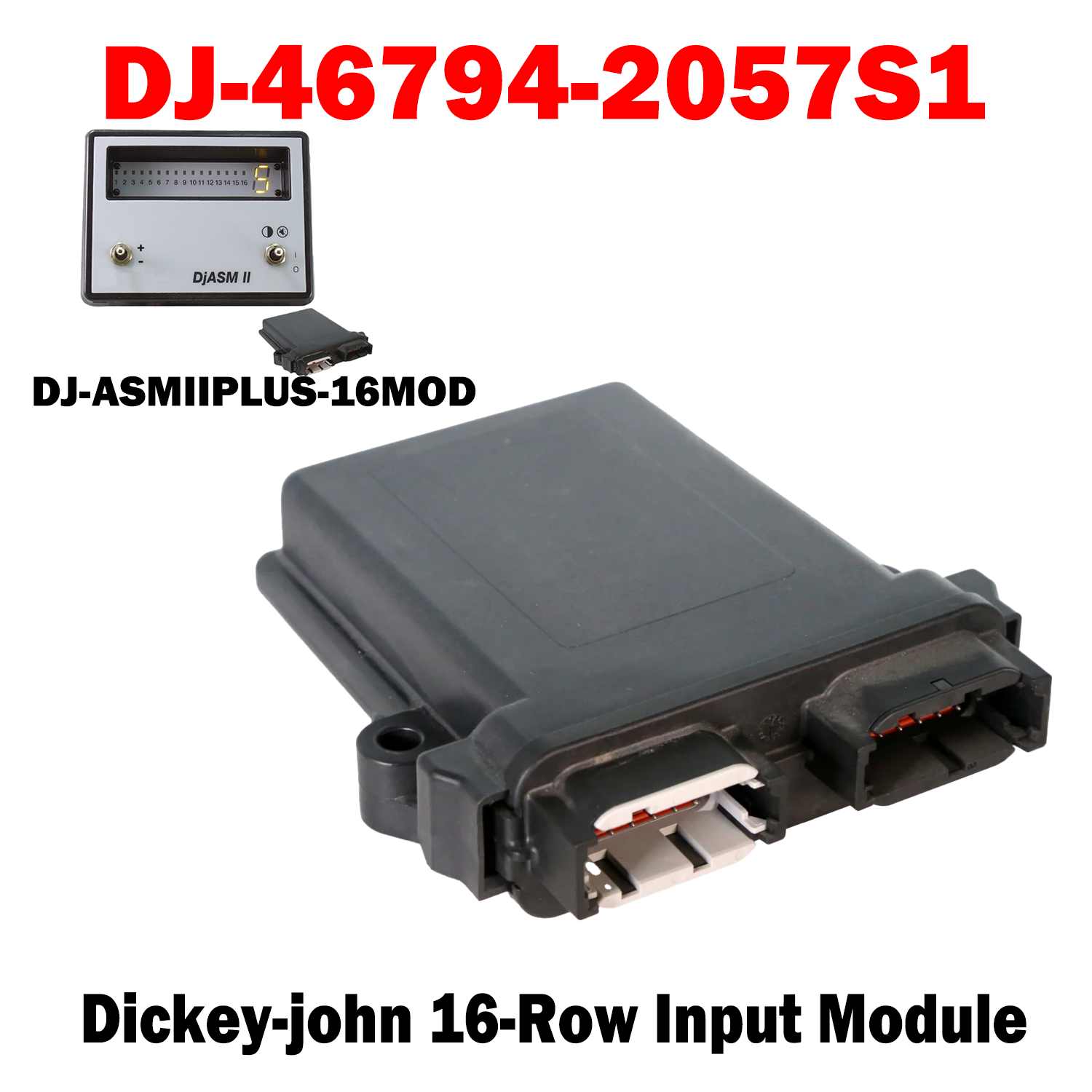

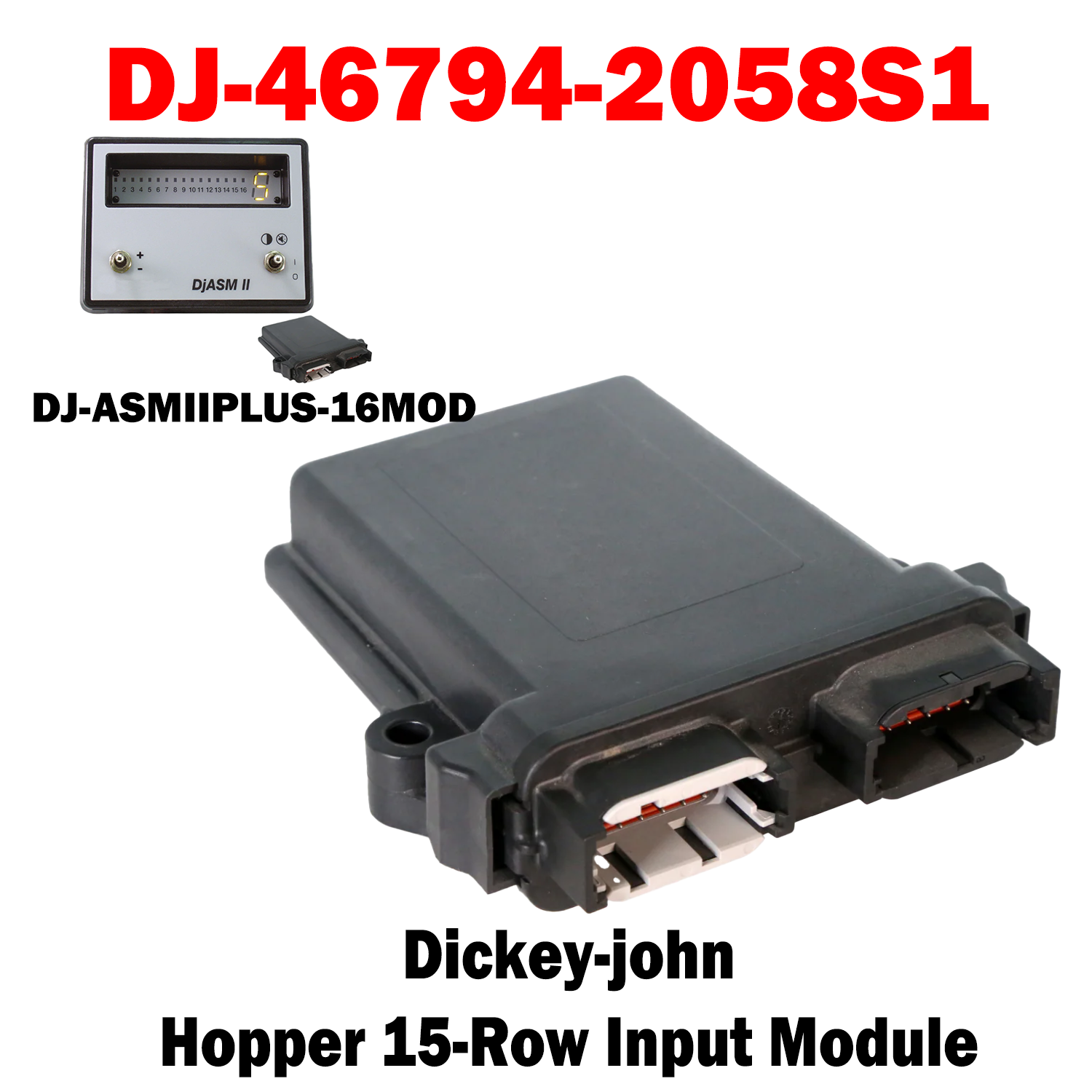

16 row or 15 row and 1 hopper level sensor display capability per ASM II Module
Implement lift switch input
16 row indicators • 7 segment indicator (displays 1,2,3,4,5,6,7,8,9,0, A,C,E,H,L)
OFF/ON/DIM-ALARM CANCEL toggle switch
5 step LED dimming for full sunlight/night time use
Internal audible alarm (chirp/blare output)
12 VDC power relay switching output (for modules)
Minimum seeding rate adjustment switch/split row enable
