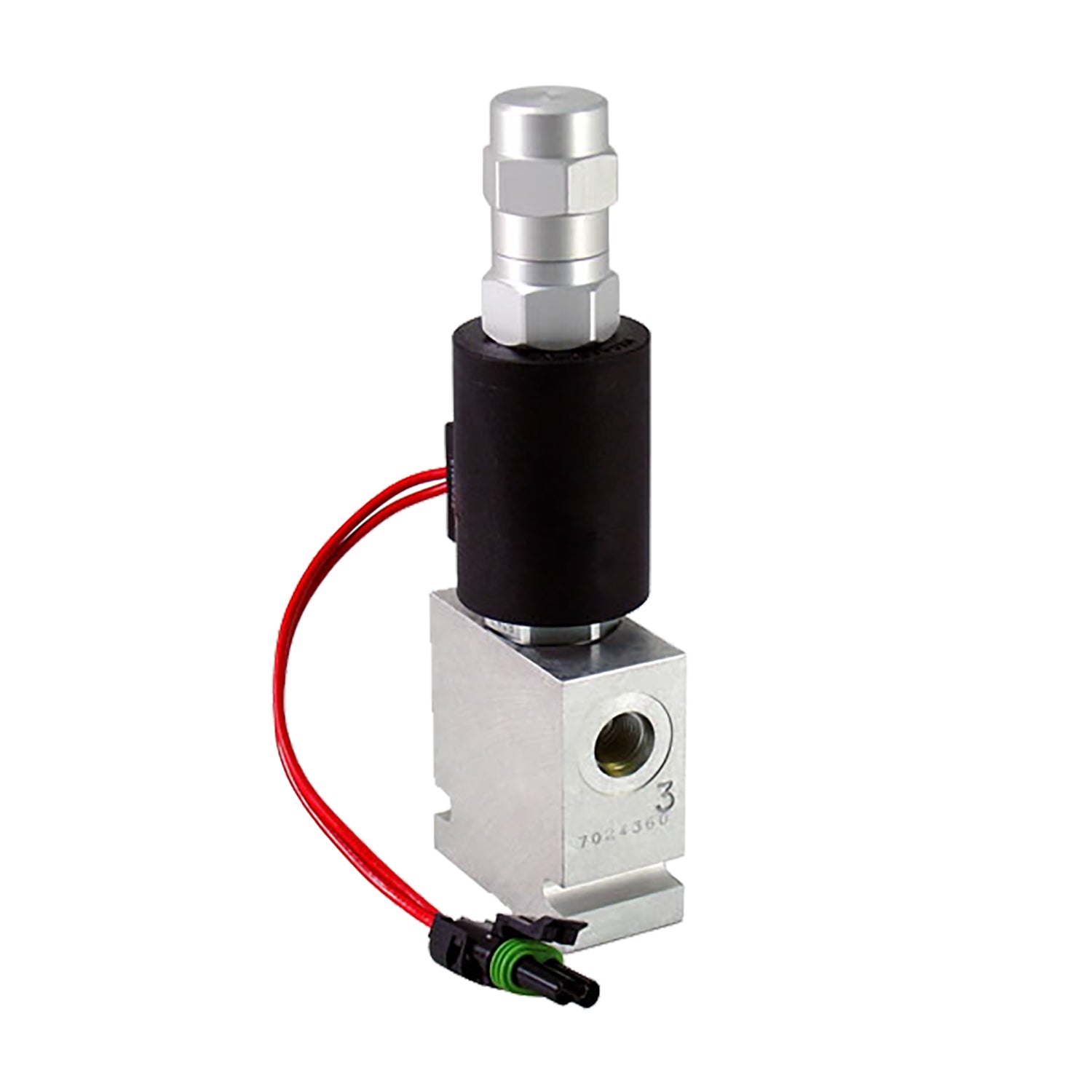

Proportional Hydraulic Flow Control Valves
Available in 4 and 8 gpm sizes. Operating pressure inlet 3,500 psi (240 bar). Regulated flow rate 0-4 gpm (0-15 lpm), 0-8 gpm (0-30 lpm). Reverse free flow cracking pressure 15-20 psi (1-1.4 bar). Internal leakage 0.10 gpm (0.38 lpm) at zero current. Coil voltage 12 VDC. Maximum control current of 1,500 ±100 mA. Use the following information to help you choose the right flow control valve for your equipment.
Liquid Flow Rate Formula
To calculate liquid flow rates (gpm) so you can pick the correct Flow Control
Valve for your application, use the following formula:
Width x speed x application rate (gpa) x 0.00202 = gpm
Example: 60 ft. x 15 mph x 20 gpa x 0.00202 = 36.36 gpm
