PM2005 | 1-24 Row Population Planter Monitor

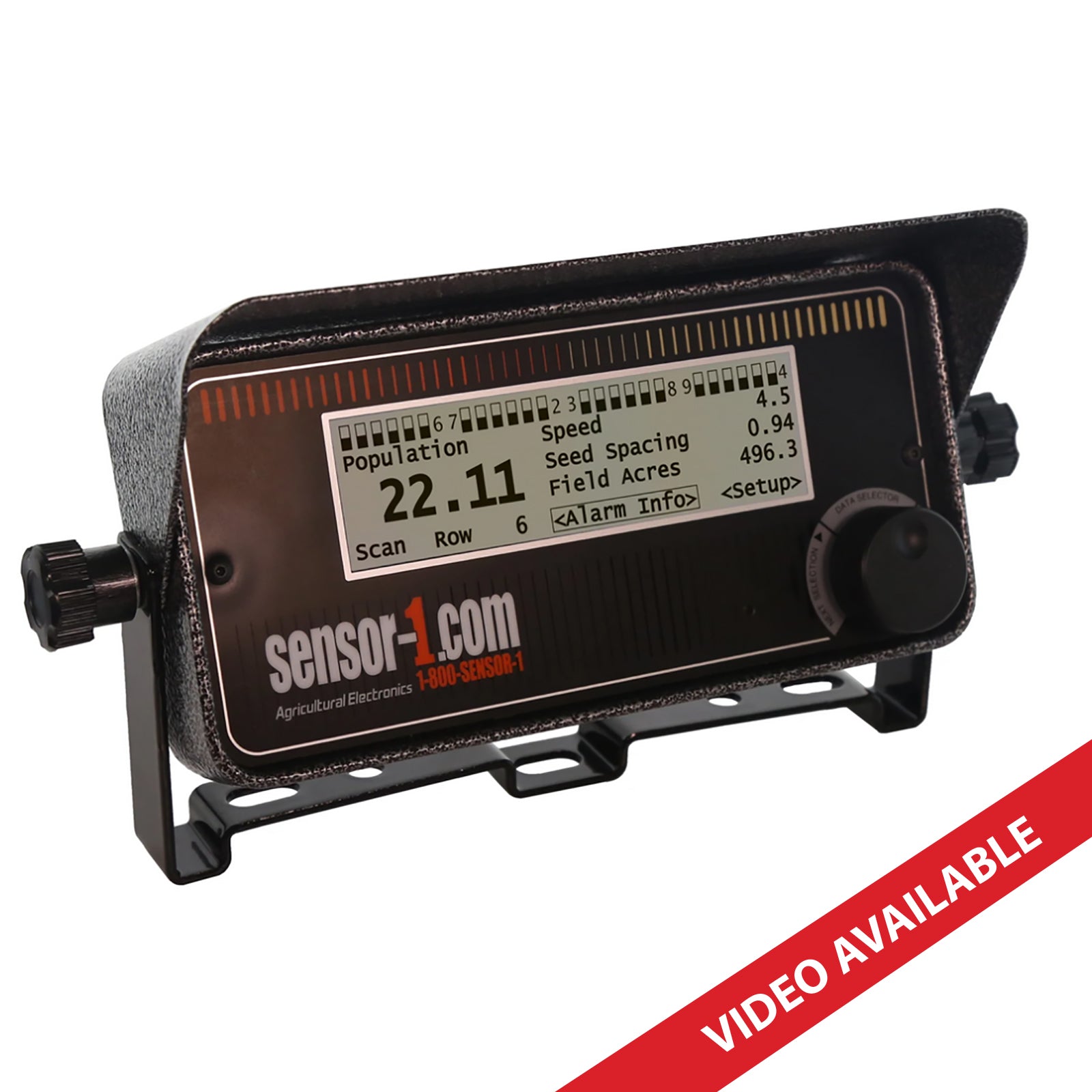

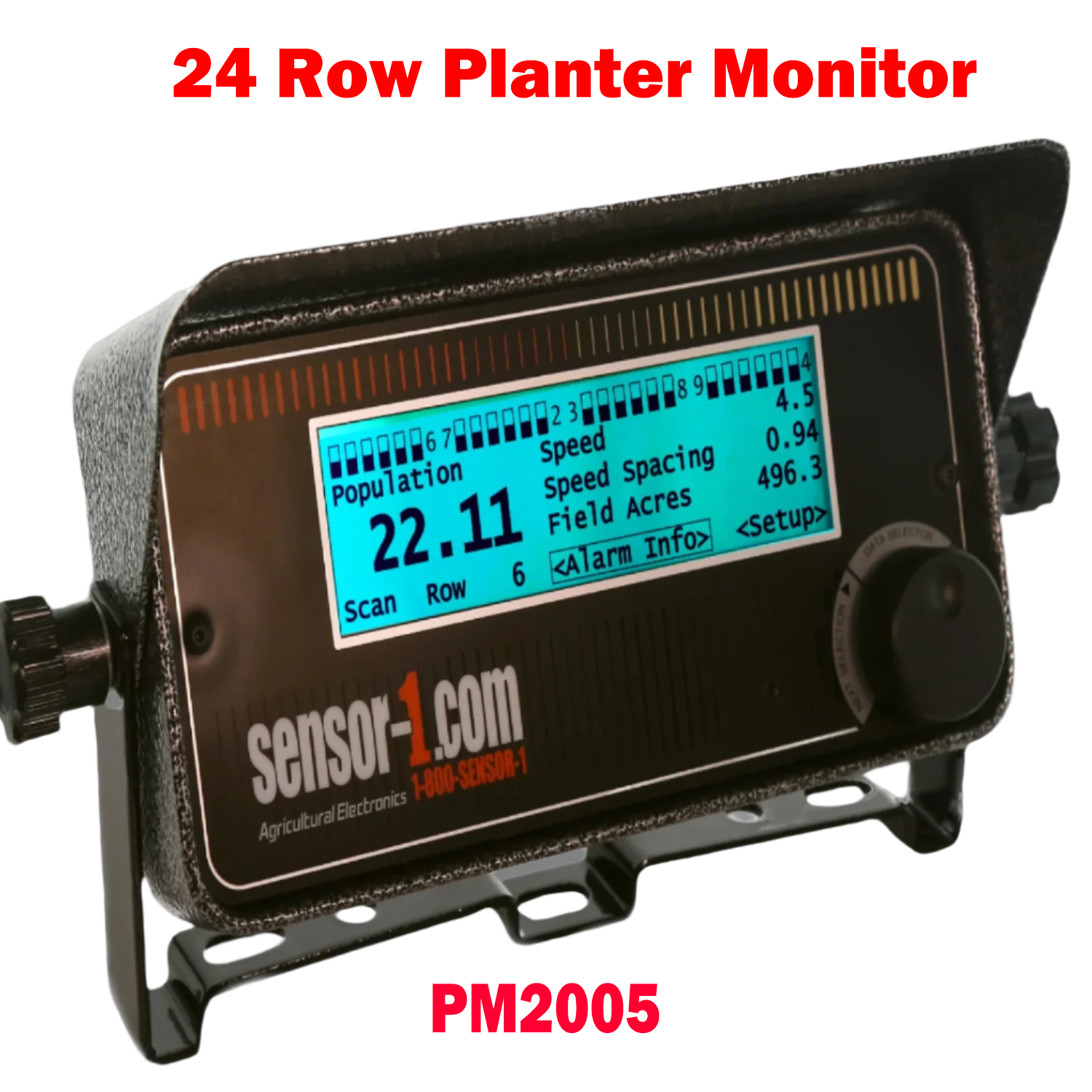

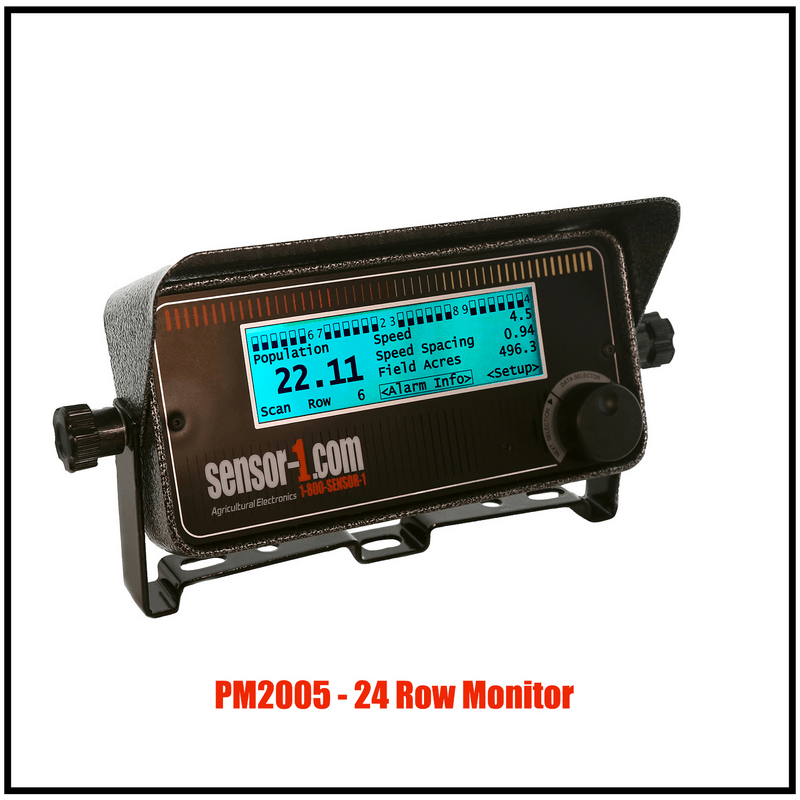

SENSOR-1 Population Monitor can monitor up to 24-row drops. It is designed to monitor the population and seed flow of your planter or drill.  The compact, state-of-the-art design measures 8-½” long, 4-½” wide and only 1-¾” deep and is constructed of lightweight, durable die-cast aluminum.  The back-lit LCD screen features an easy-to-read bar graph and numeric digital display that can be set up to display total population, average population, seed spacing (per inch), speed (MPH), travel distance (miles), field or total field acres, and much more. Measurements can be displayed in either English or Metric.  The monitor also features a high/low population alarm. Contact information may be stored in this monitor in case of theft or loss.

NOTE: If ordering just the Monitor know your pin out to match your harness!

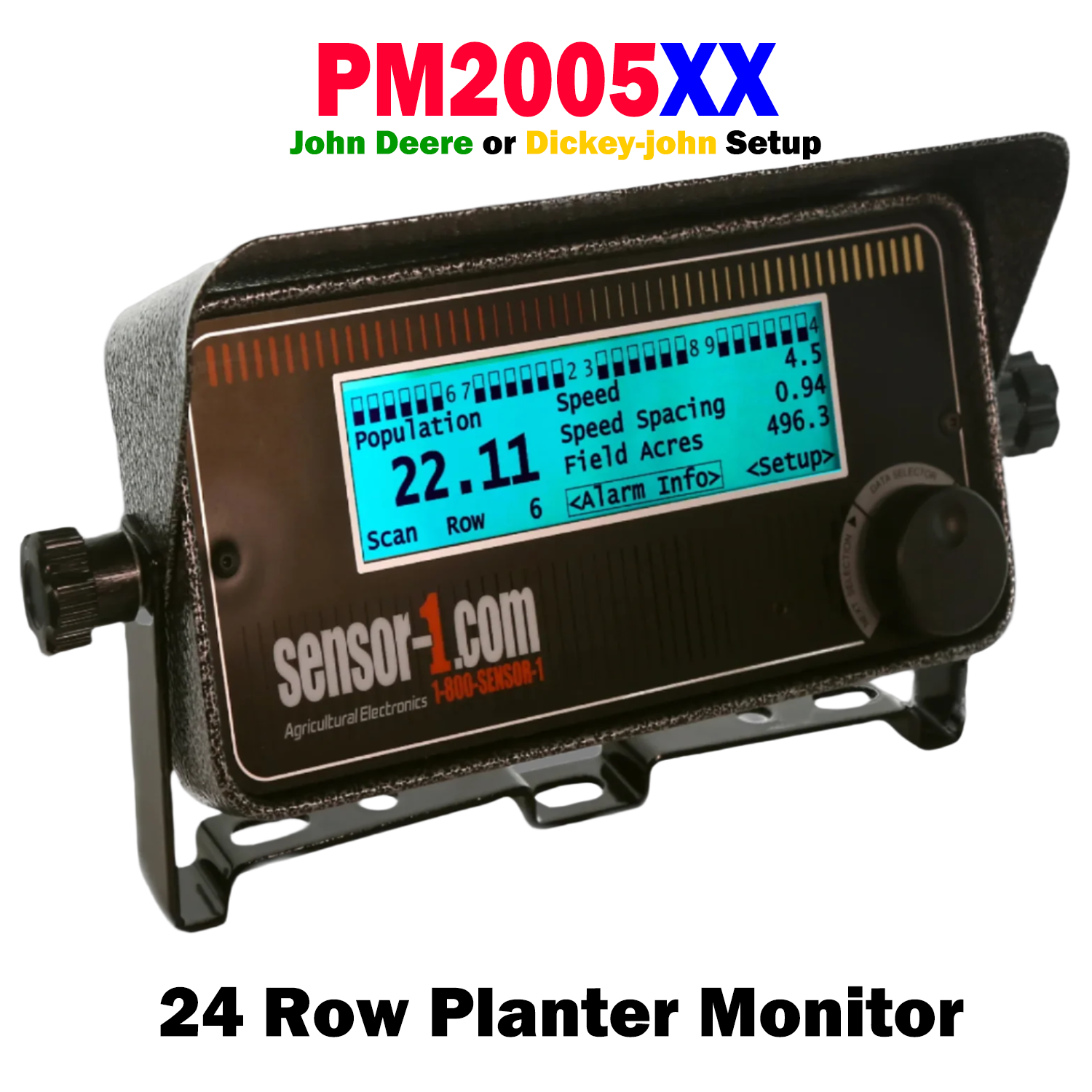

• Sensor-1 Monitor Pins out John Deere or Dickey-john

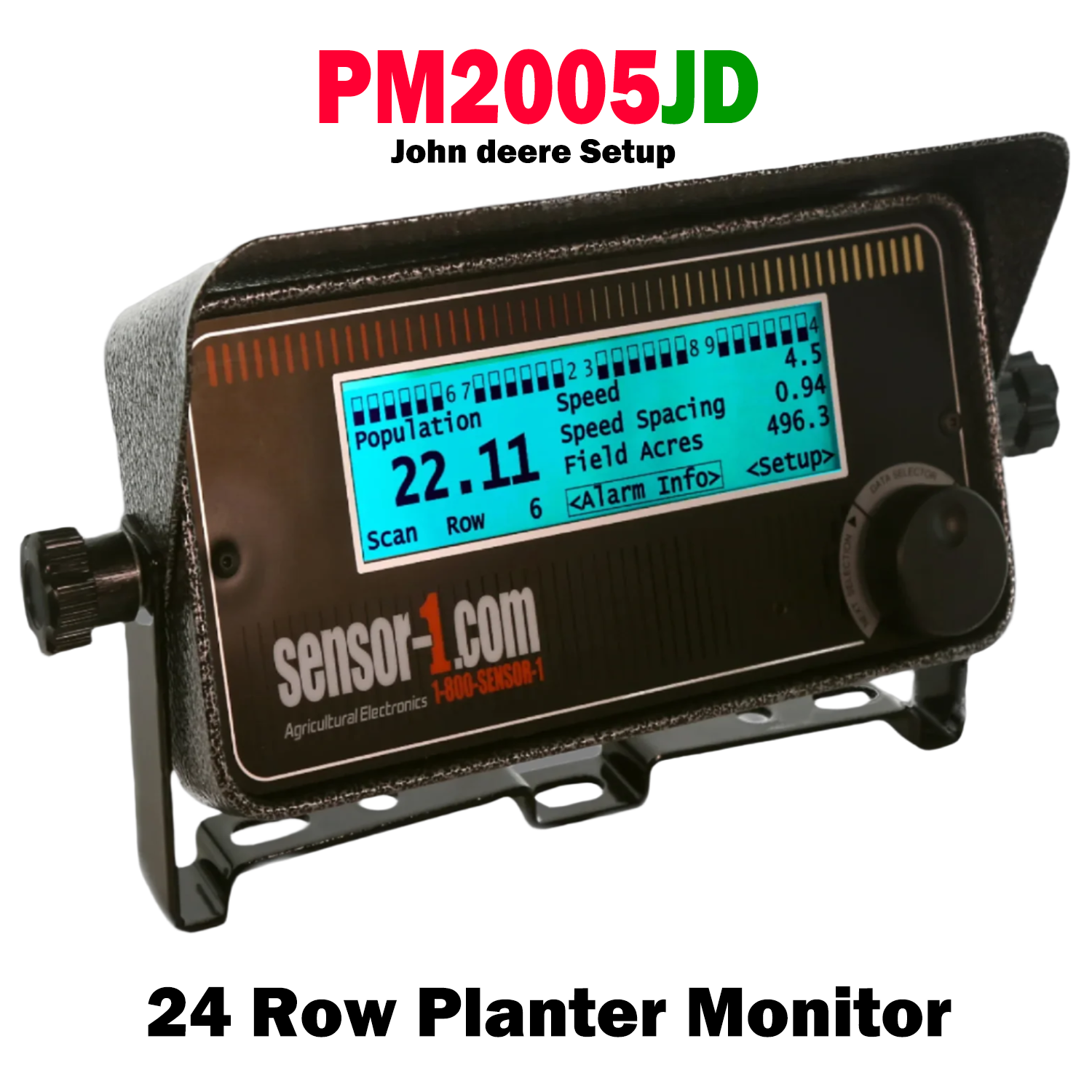

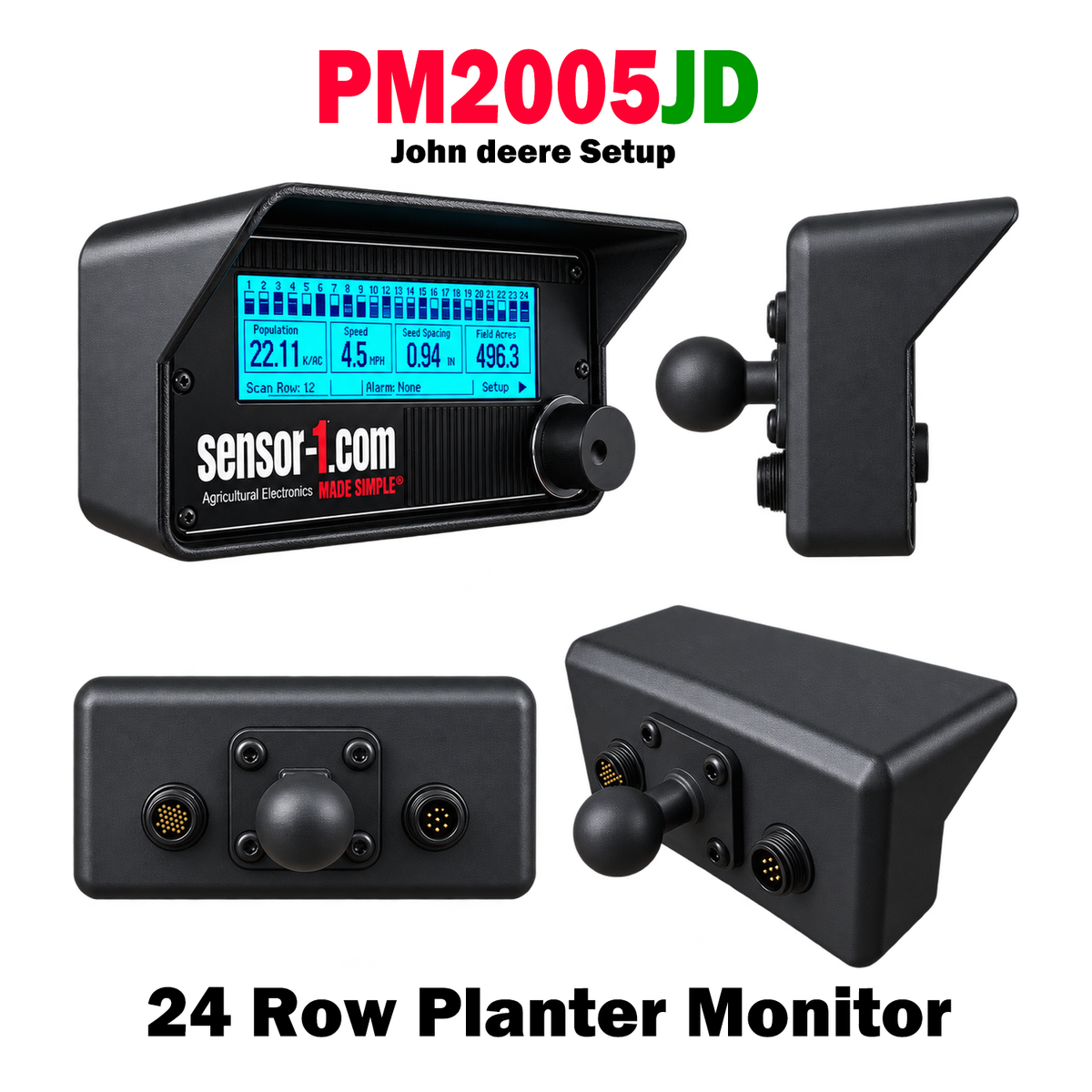

• John Deere - Power is in Pin 27, Ground is in Pin 28

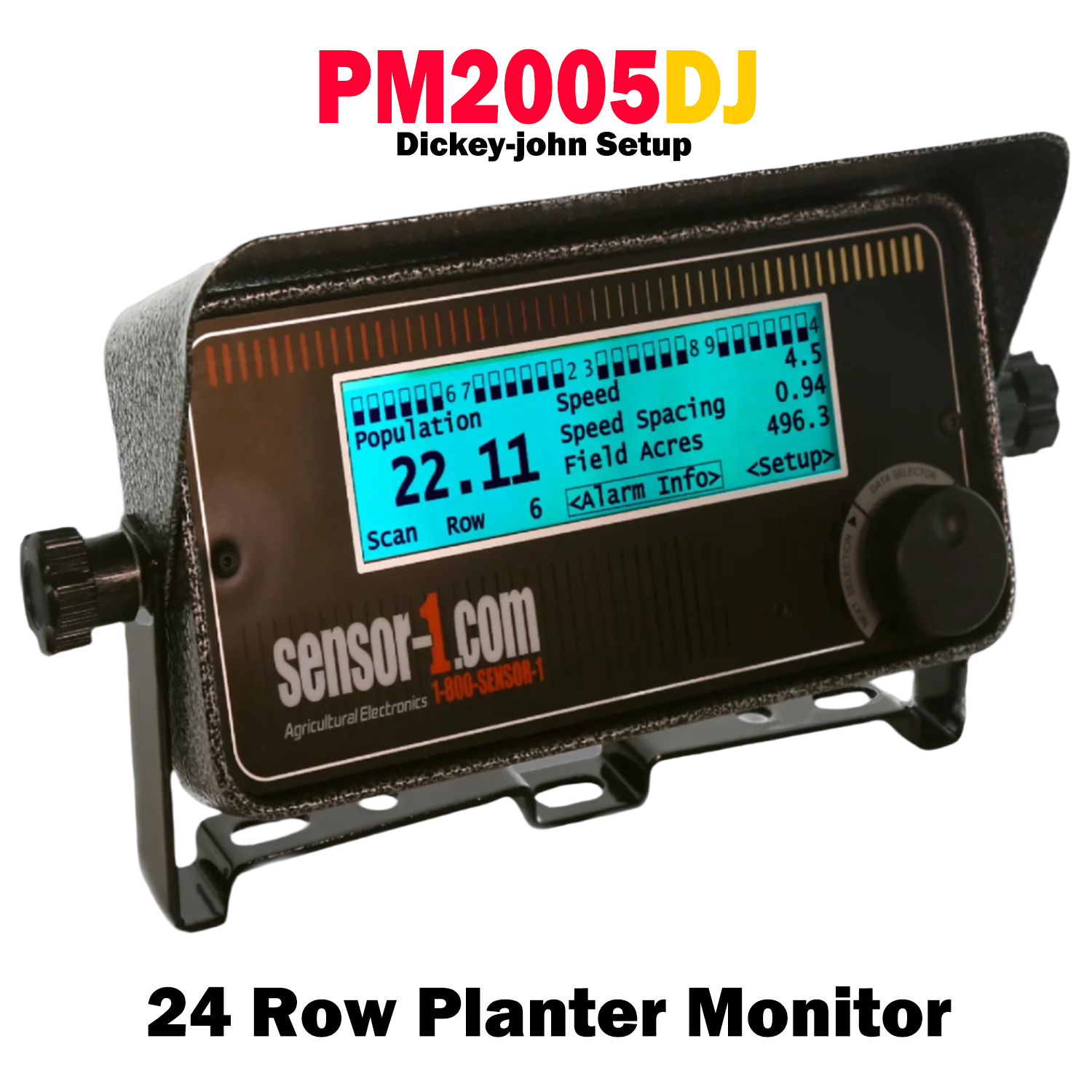

• Dickey-john - (Under 12 Rows) Power is in pin 24, Ground is in Pin 26
• Dickey-john - (12 & 16 Rows) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
