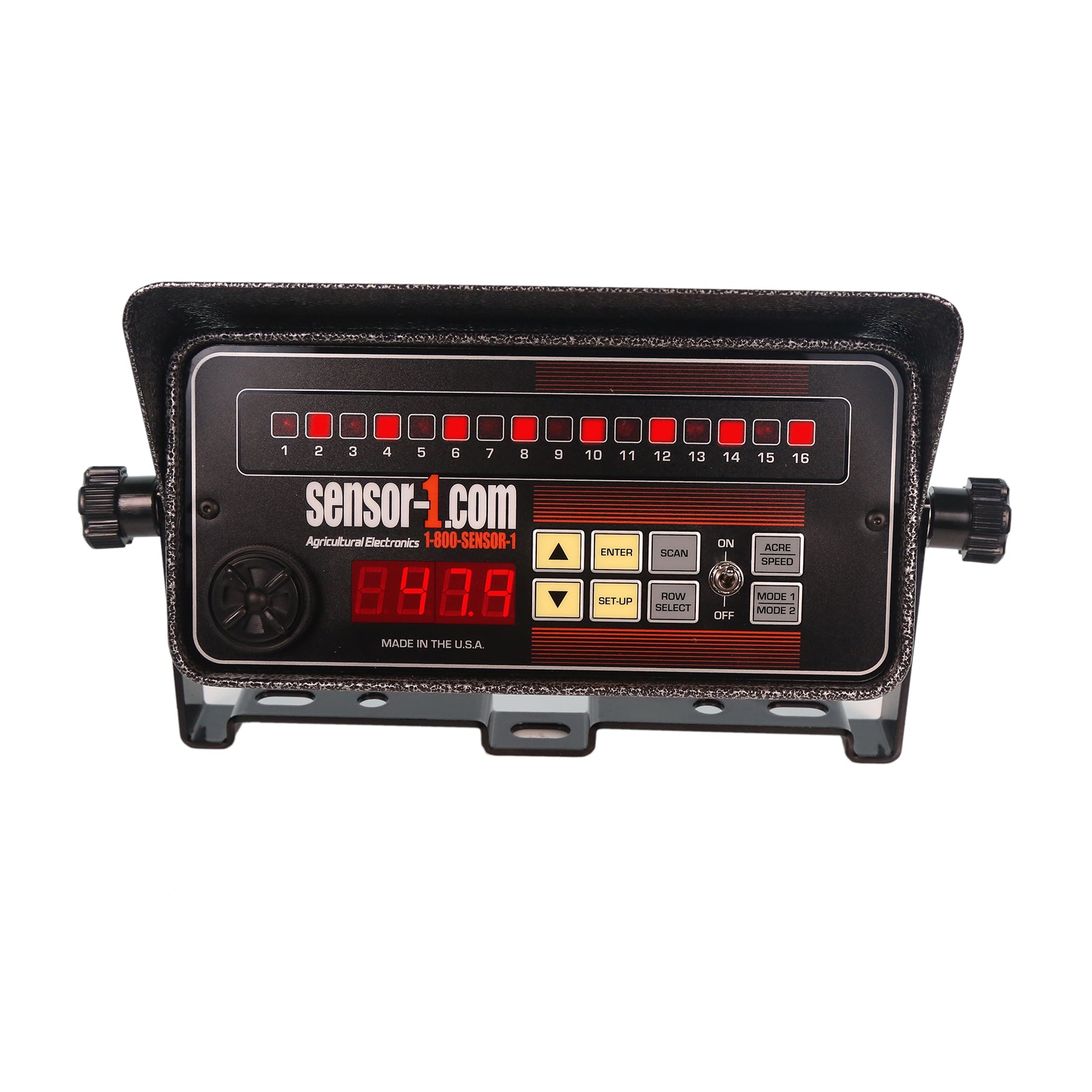

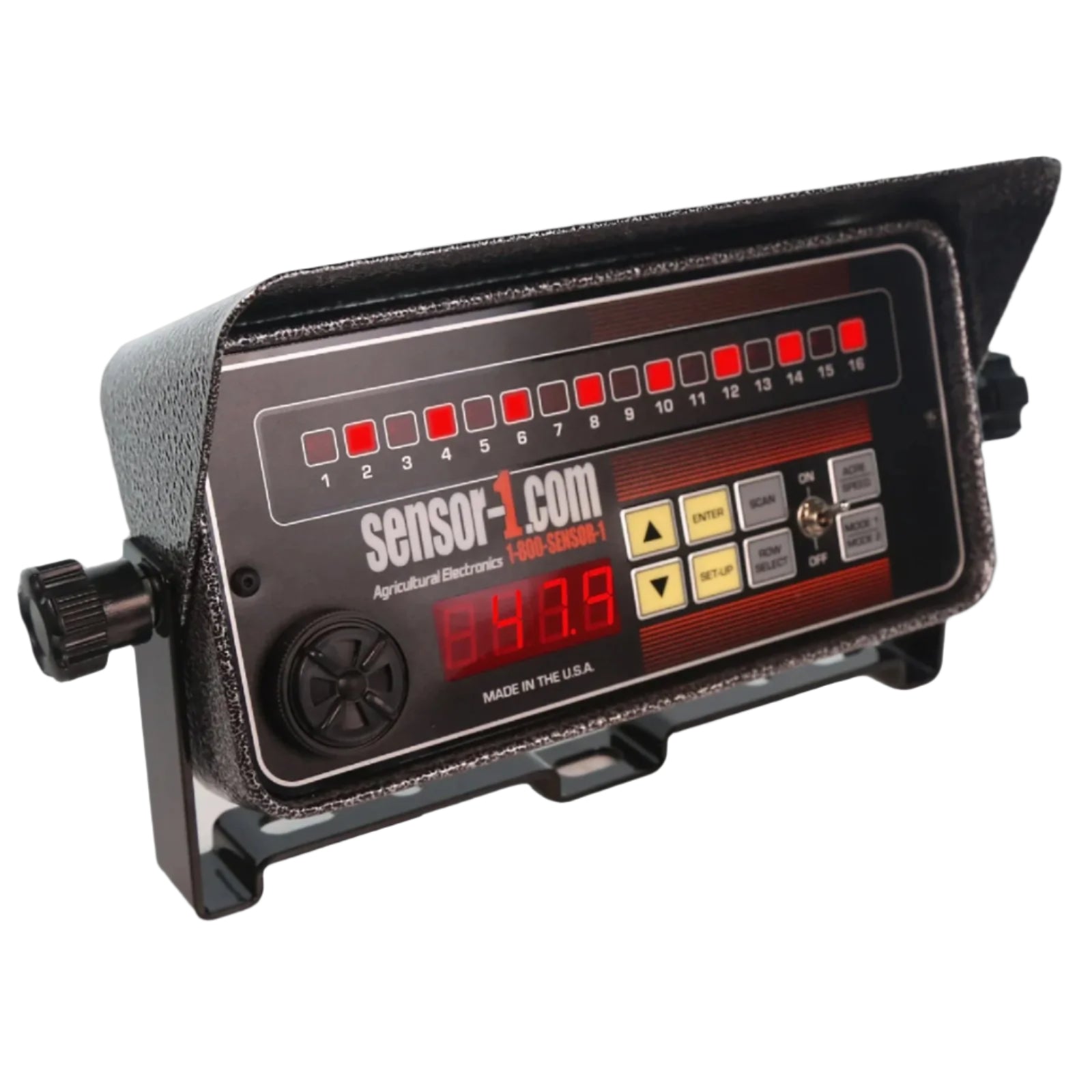

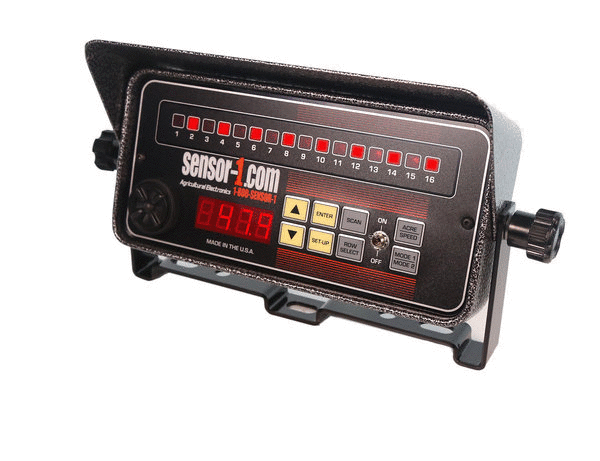

SENSOR-1 Population Monitor is designed to monitor population and seed flow.  It is a compact design measuring 8-½” long, 4-½” wide and only 1-¾” deep. Features two display modes:  Mode 1 - LED lights flash each time a seed drops; Mode 2 - LED lights remain off until a row fails. Displays population (seeds per acre), average population, speed (MPH), field acres, total acres and seed spacing per inch. With a high/low population alarm, hopper-level sensors and population update in real time. Includes sun cap, bracket, monitor & power cord and user manual.

NOTE: If ordering just the Monitor know your pin out to match your harness!

• Sensor-1 Monitor Pins out John Deere or Dickey-john

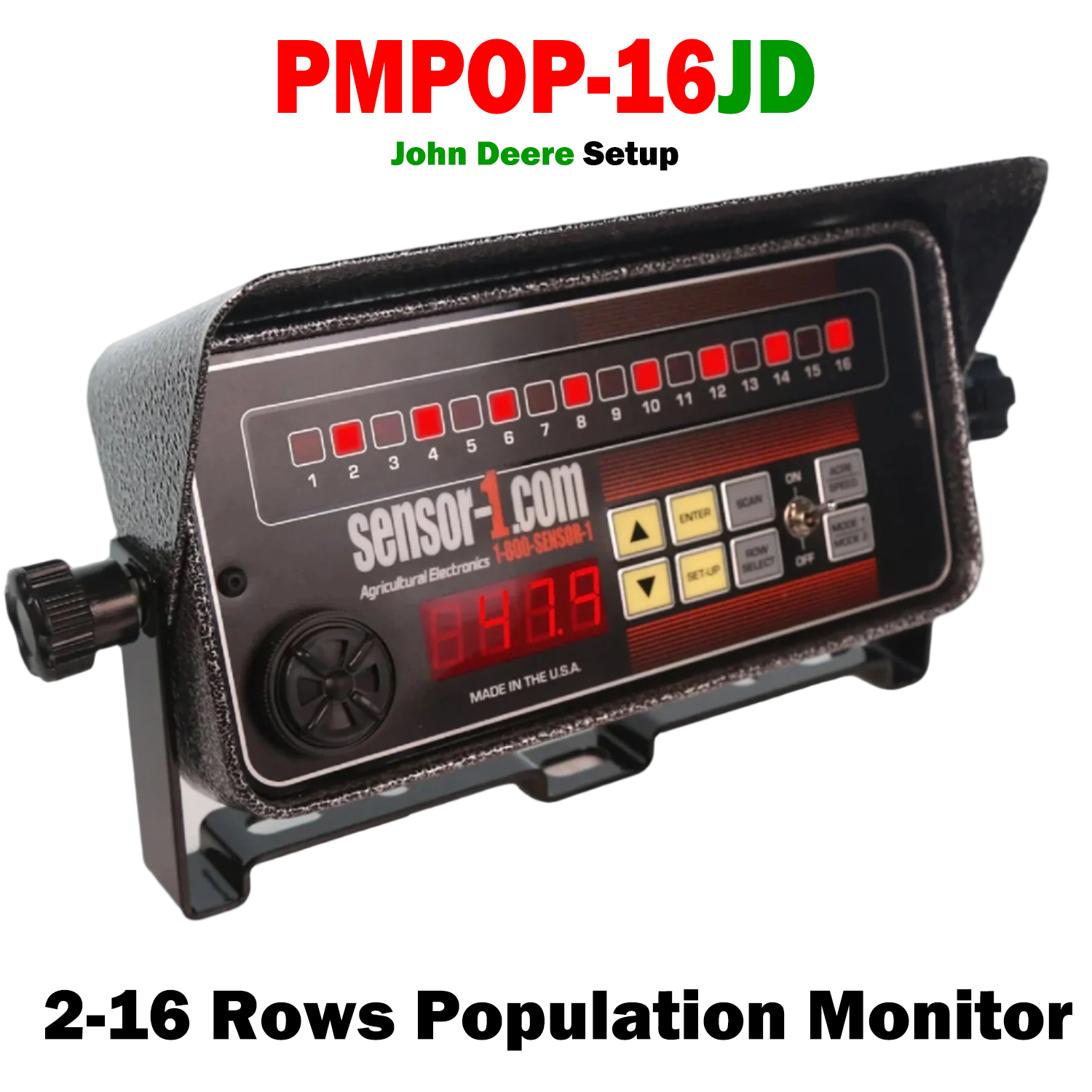

• John Deere - Power is in Pin 27, Ground is in Pin 28

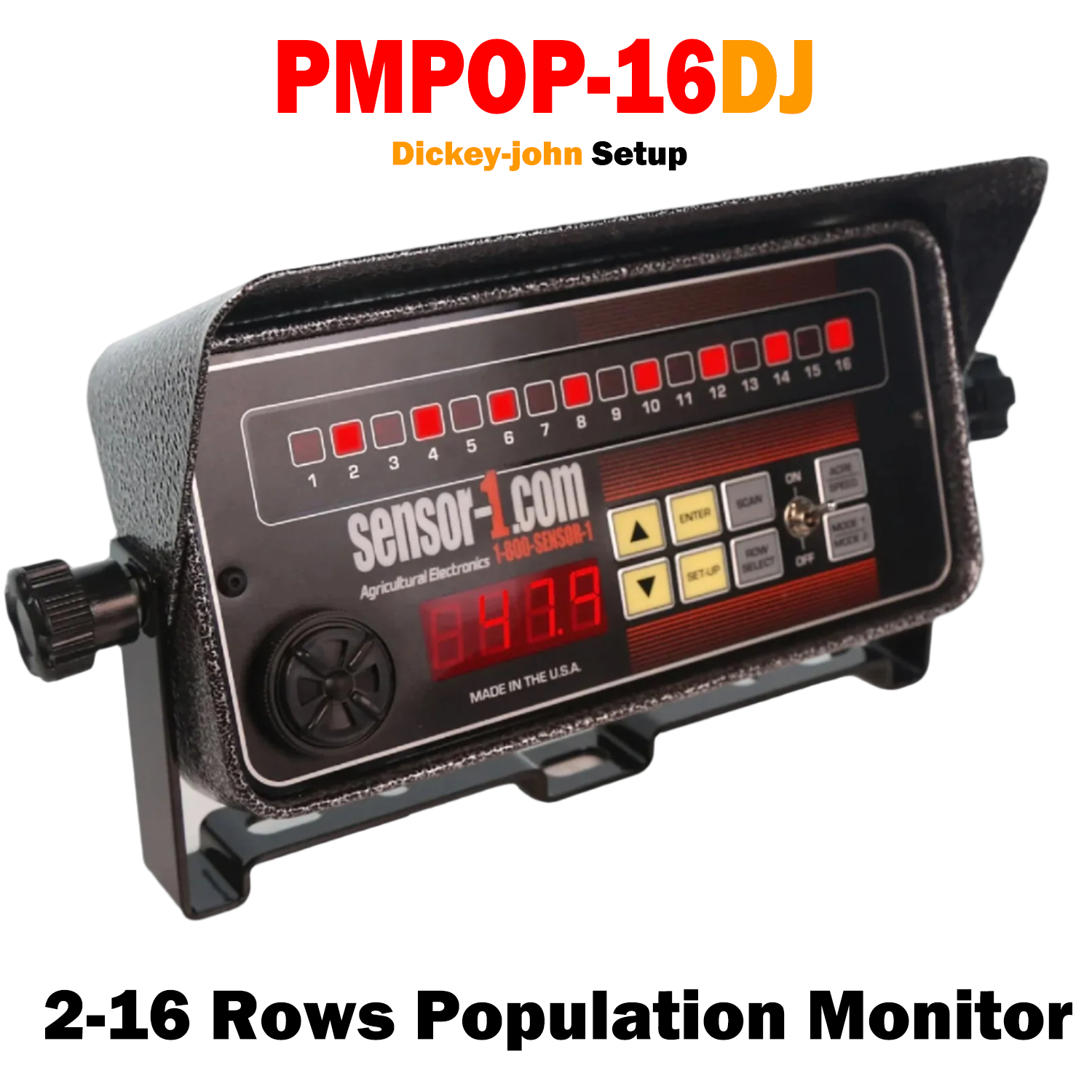

• Dickey-john - (Under 12 Rows) Power is in pin 24, Ground is in Pin 26
• Dickey-john - (12 & 16 Rows) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
