Sale price$900.00 USD
Style:
SKU: PMSF-16-DJ

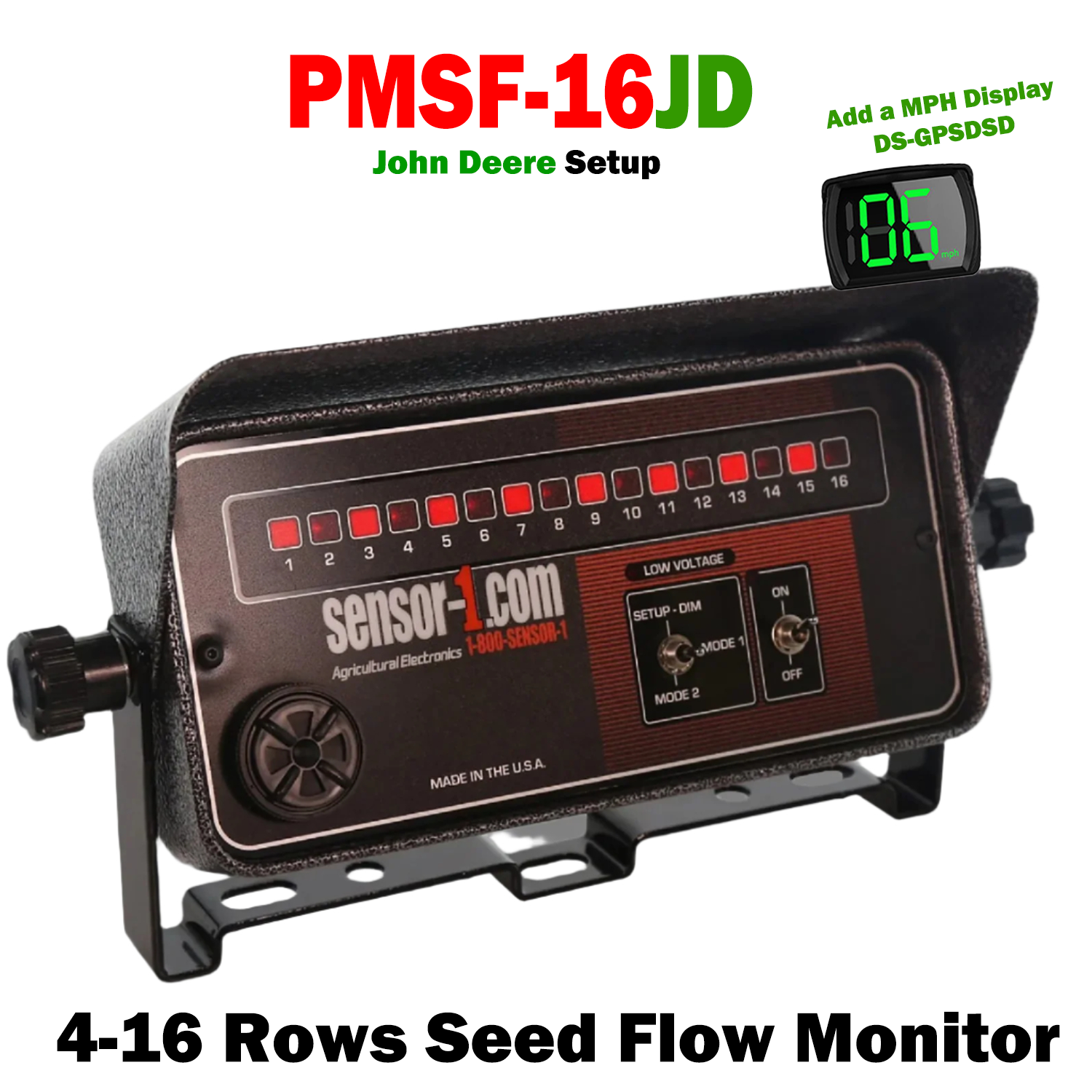

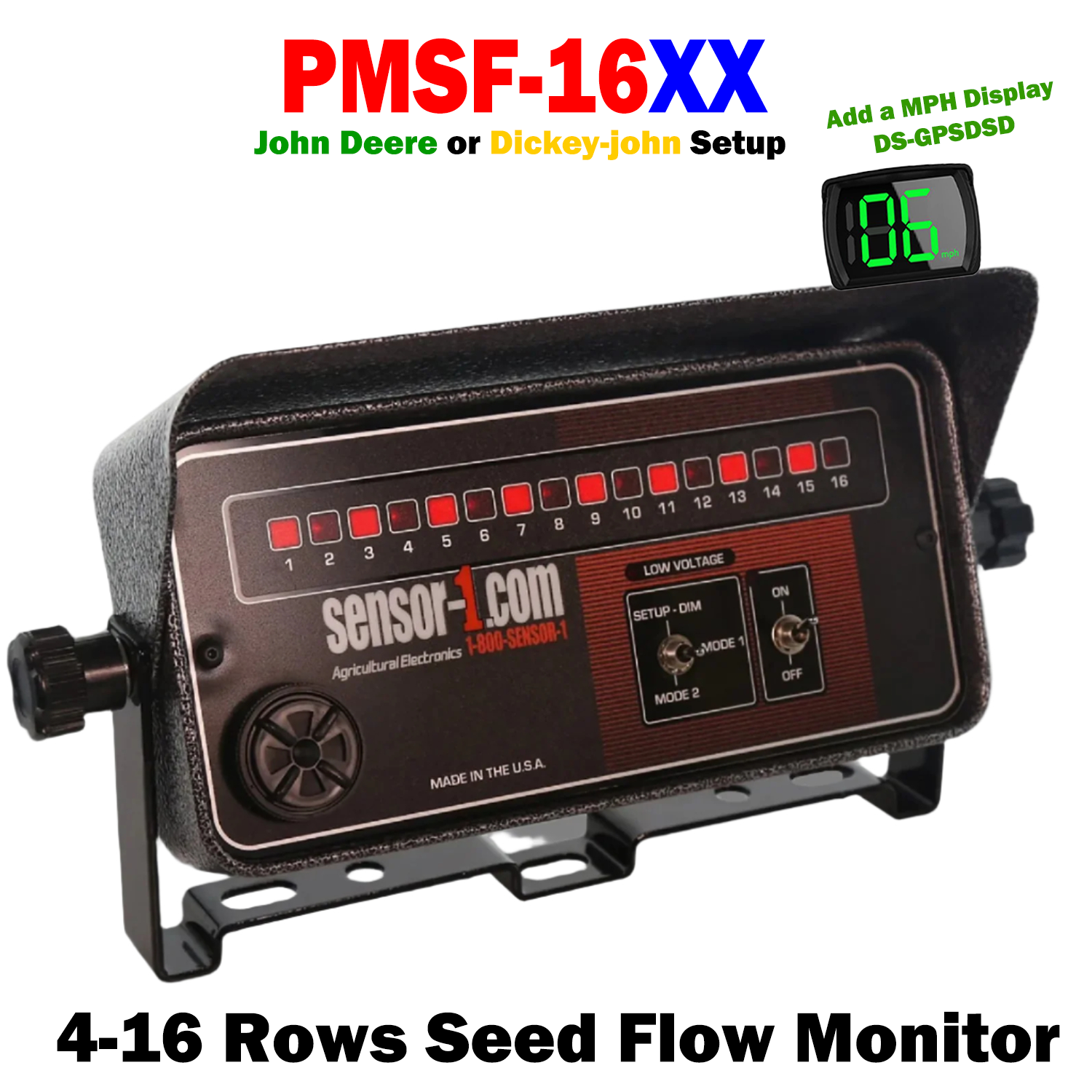

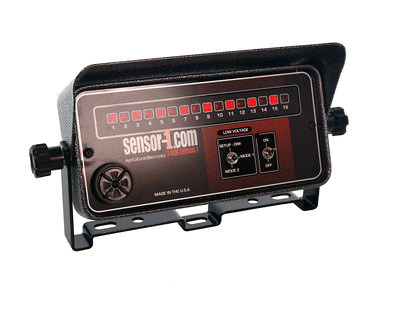

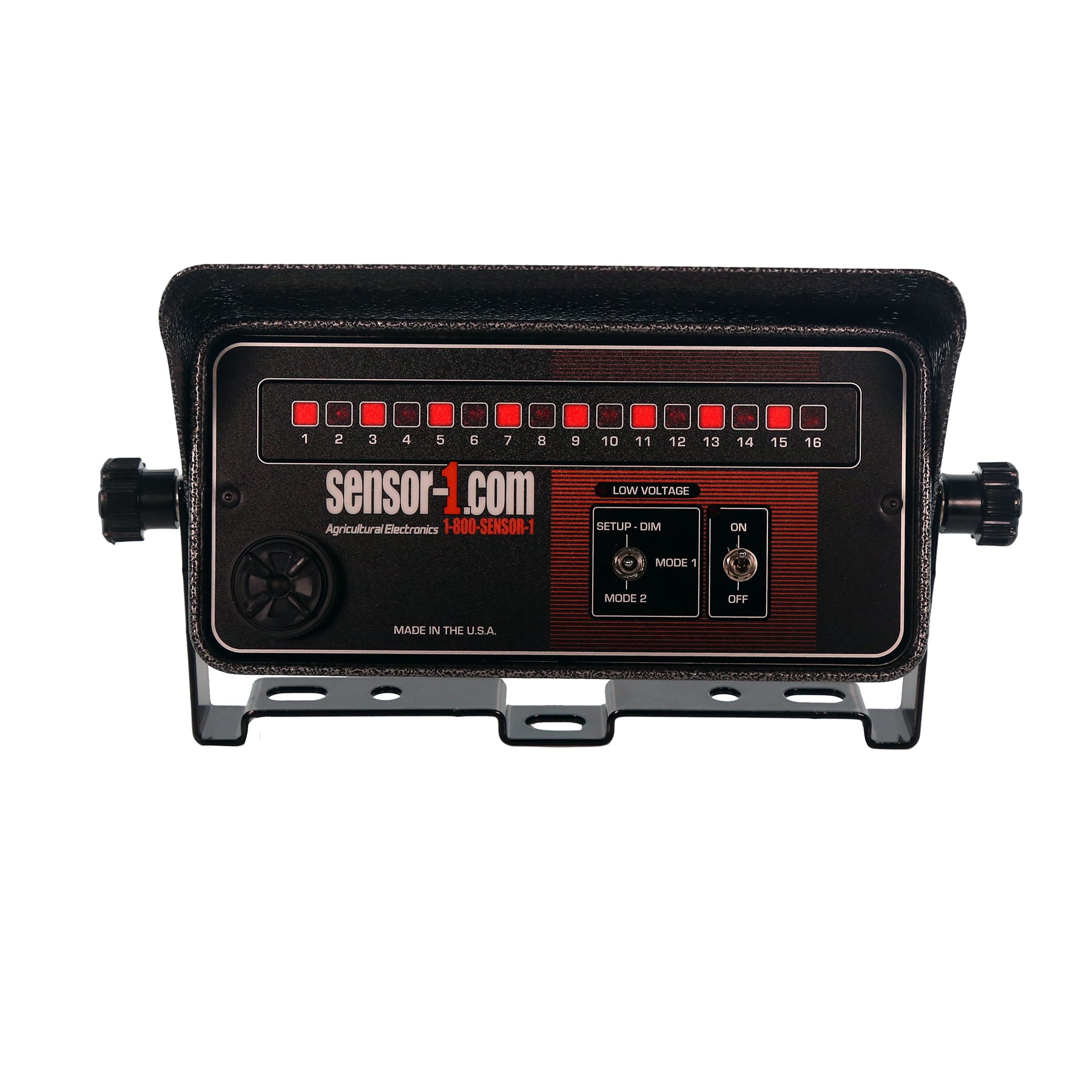

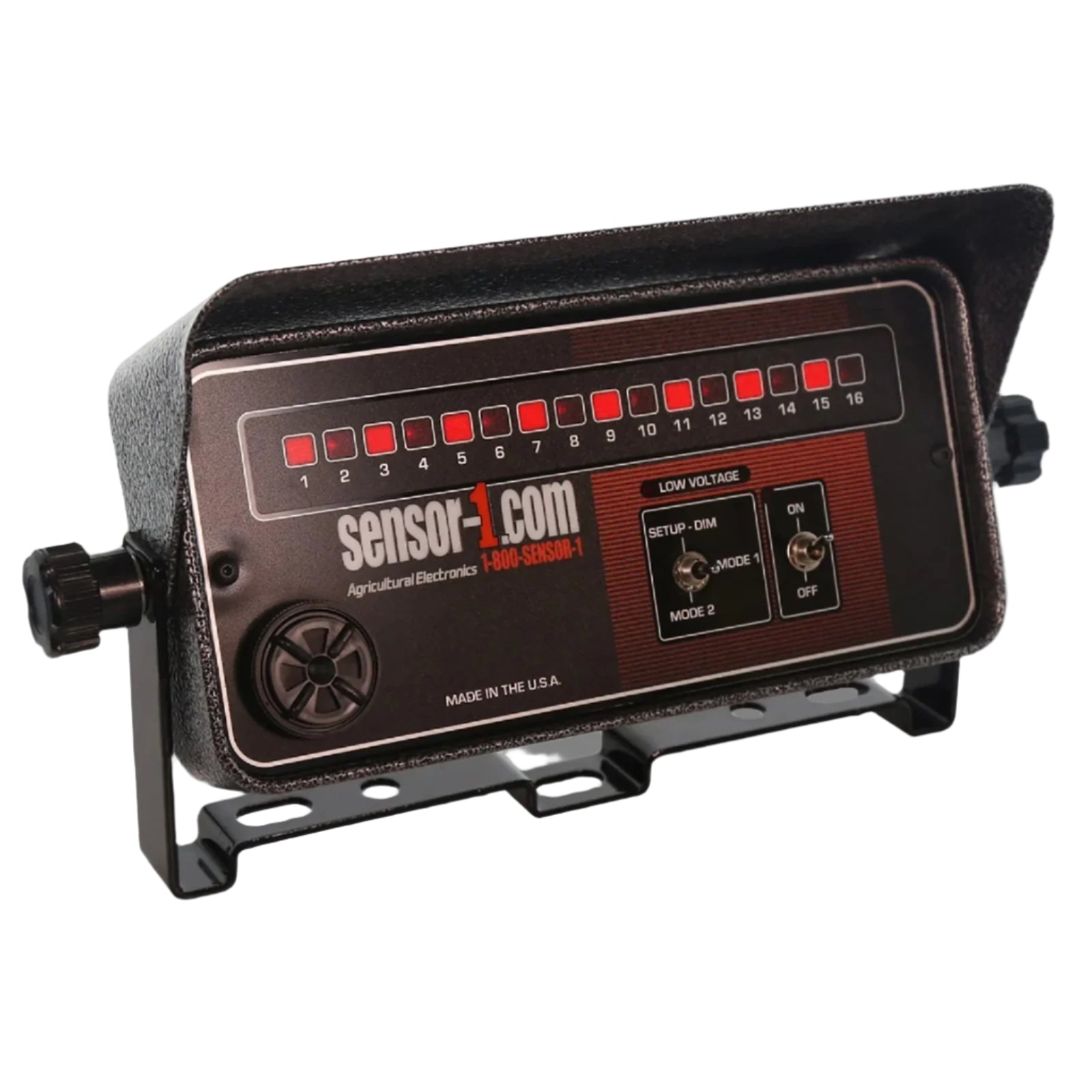

SENSOR-1 Seed Flow Monitor is a compact design measuring 8-½” long, 4-½” wide and only 1-¾” deep.  Features two display modes: Mode 1 - LED lights flash each time a seed drops; Mode 2 - LED lights remain off until a row fails. Set up switch to set a base point to measure average seed flow. If the seed count drops below 50% of set-up point, the alarm will sound to indicate reduced seed flow and the LED lights will flash to indicate row failing. Includes sun cap, bracket, monitor & power cord and user manual.

NOTE: If ordering just the Monitor know your pin out to match your harness!

  • Sensor-1 Monitor Pins out John Deere or Dickey-john

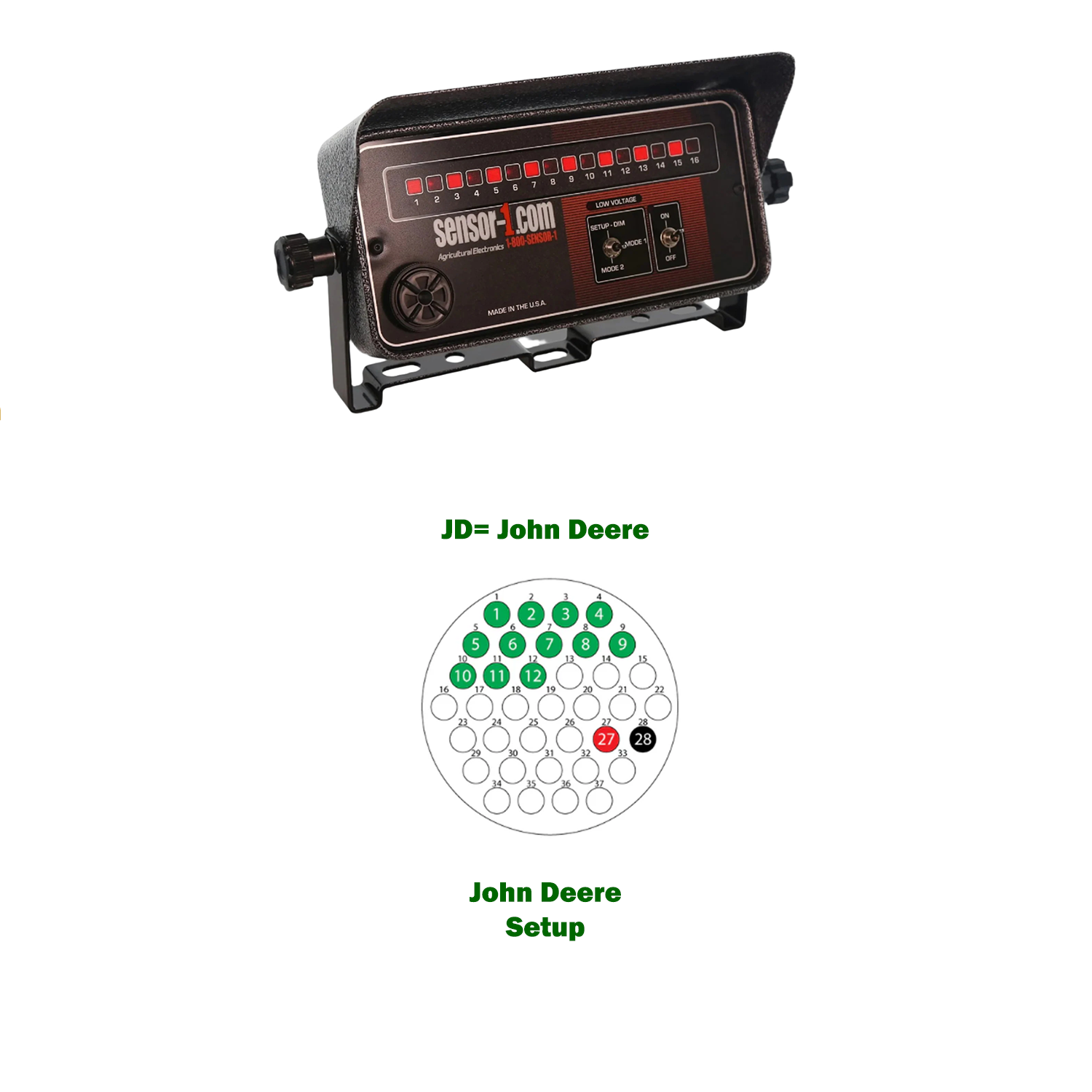

  • John Deere - Power is in Pin 27, Ground is in Pin 28

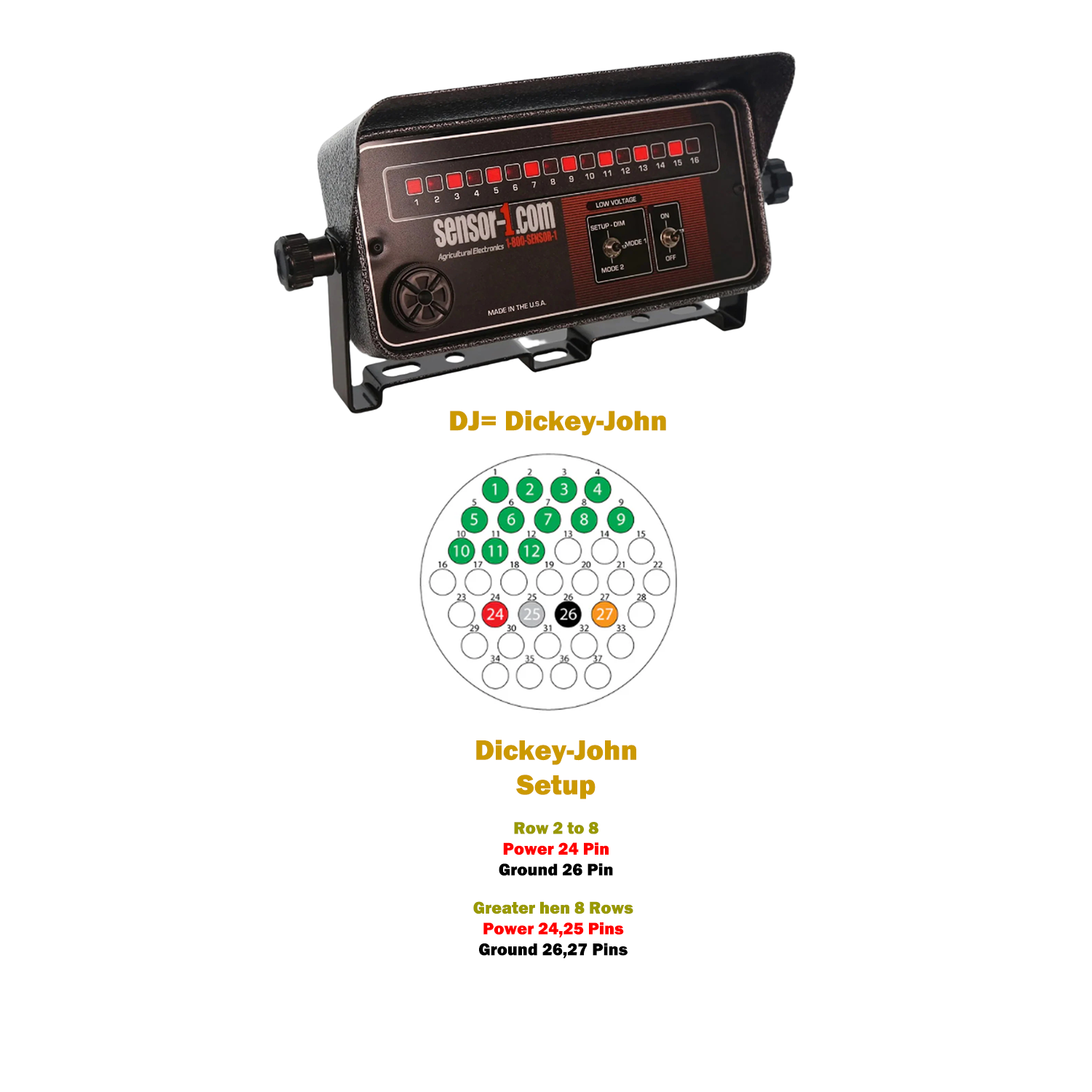

  • Dickey-john - (Under 12 Rows) Power is in pin 24, Ground is in Pin 26
  • Dickey-john - (12 & 16 Rows) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
