Sale price$150.00 USD
Size:

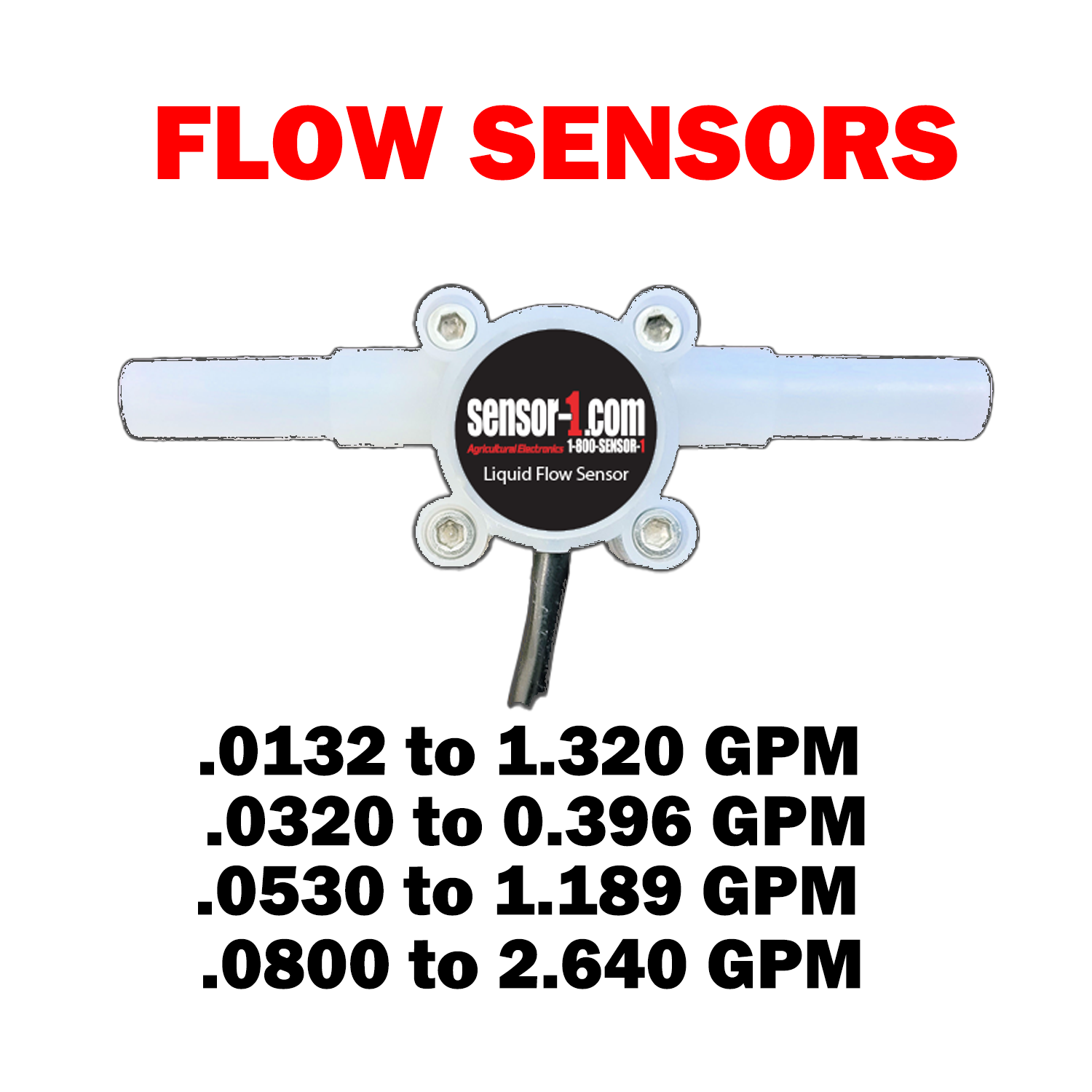

Designed to give high performance with 4 flow ranges from 0.05 to 12 L/min. Its totally non metallic wetted components makes this the ideal choice for the metering of aggressive chemicals including ultra-pure water.

FEATURES:

  • PVDF or PP body
  • 1- 2% FSD
  • Sapphire bearings
  • Hall Effect sensor
  • Pulse output (NPN Std)
  • Pulse output (PNP Option)
  • 10 Bar rating
  • Viton® seal as standard
  • 8mm and 12mm hose
  • 0.1% Repeatability
  • 4.5 to 24Vdc
  • -25°C Min to 125°C Max
  • IP67
  • NSF Certified for use in food and
Flow Meter Sensors
