Sale price$1,800.00

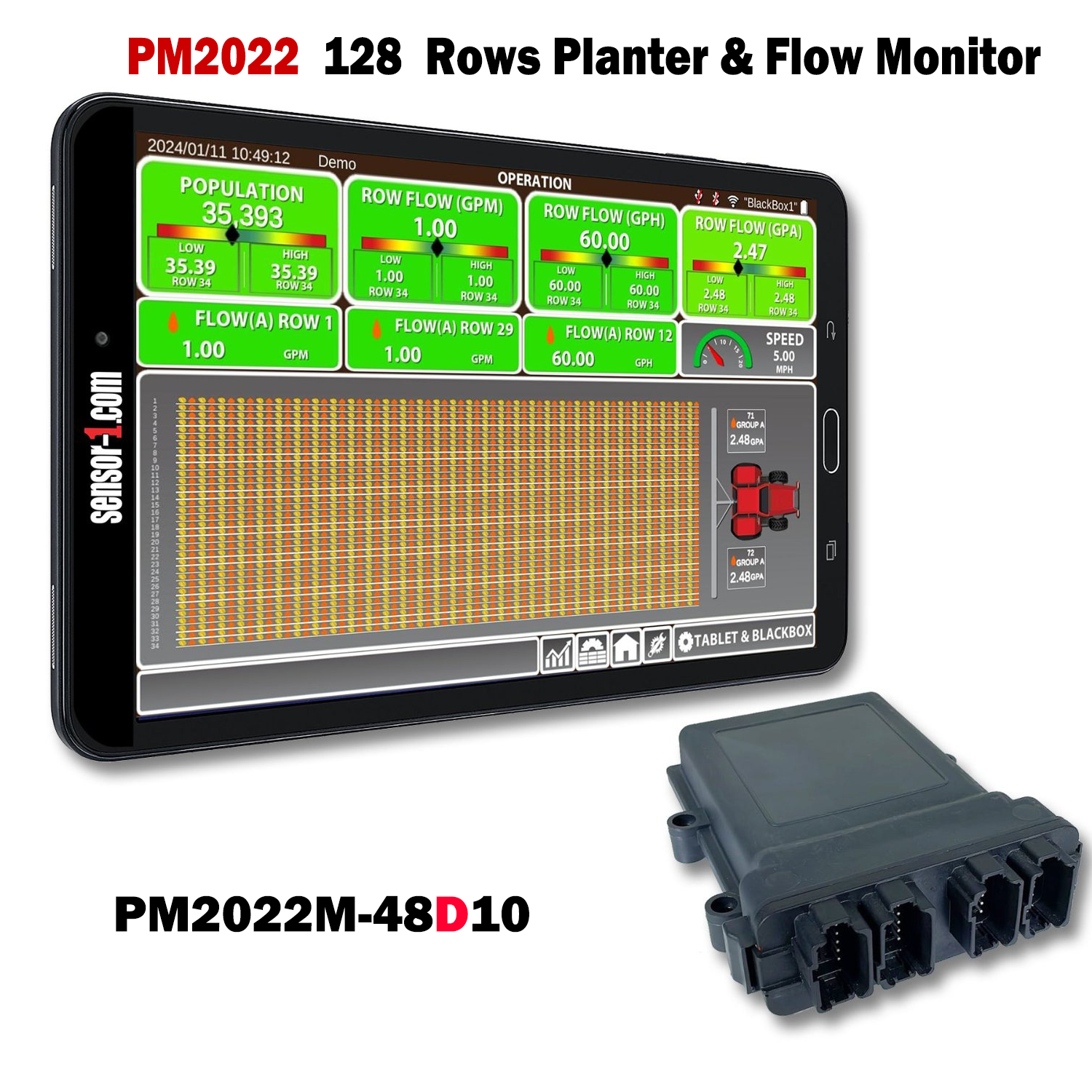

SKU: PM2022M-48D-MOD

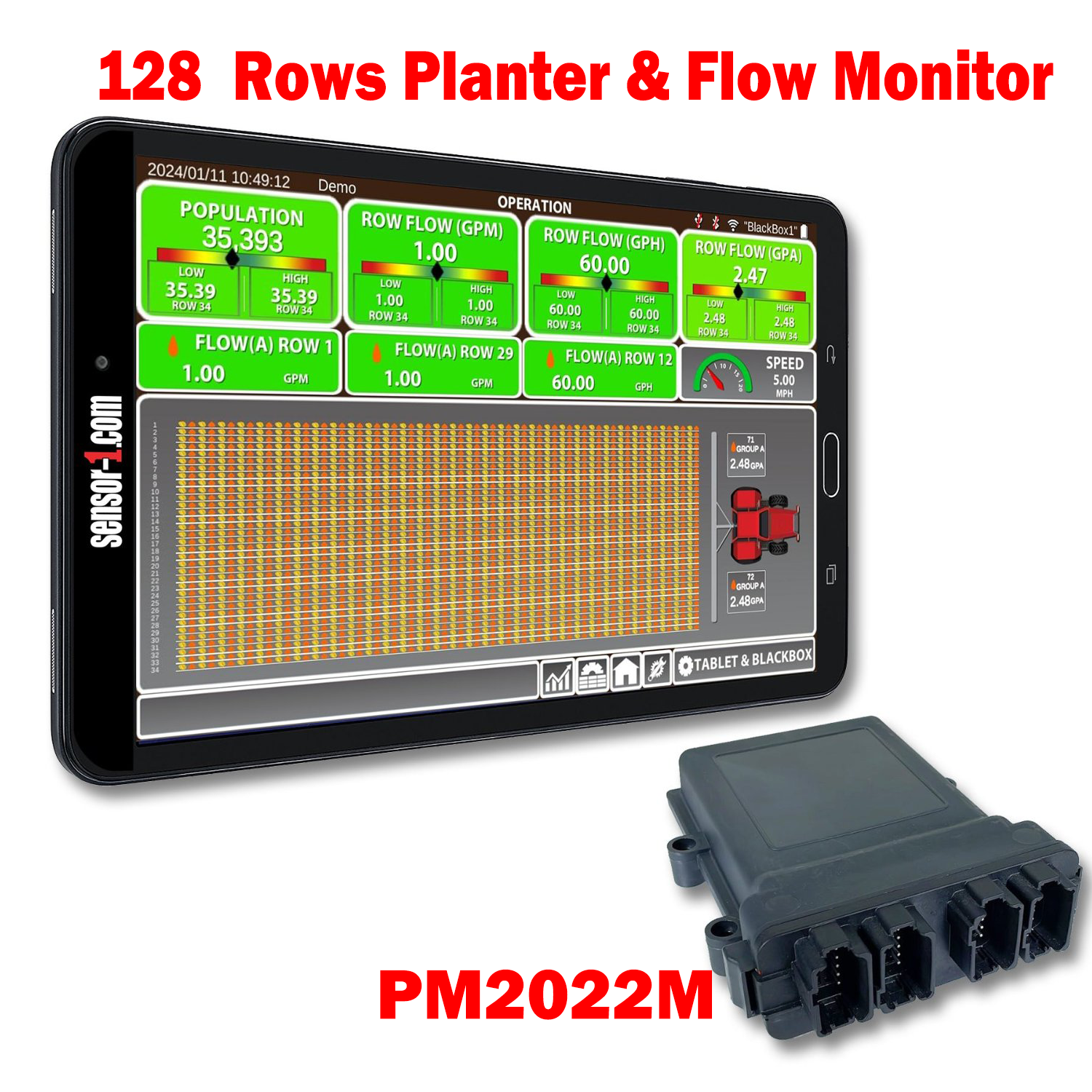

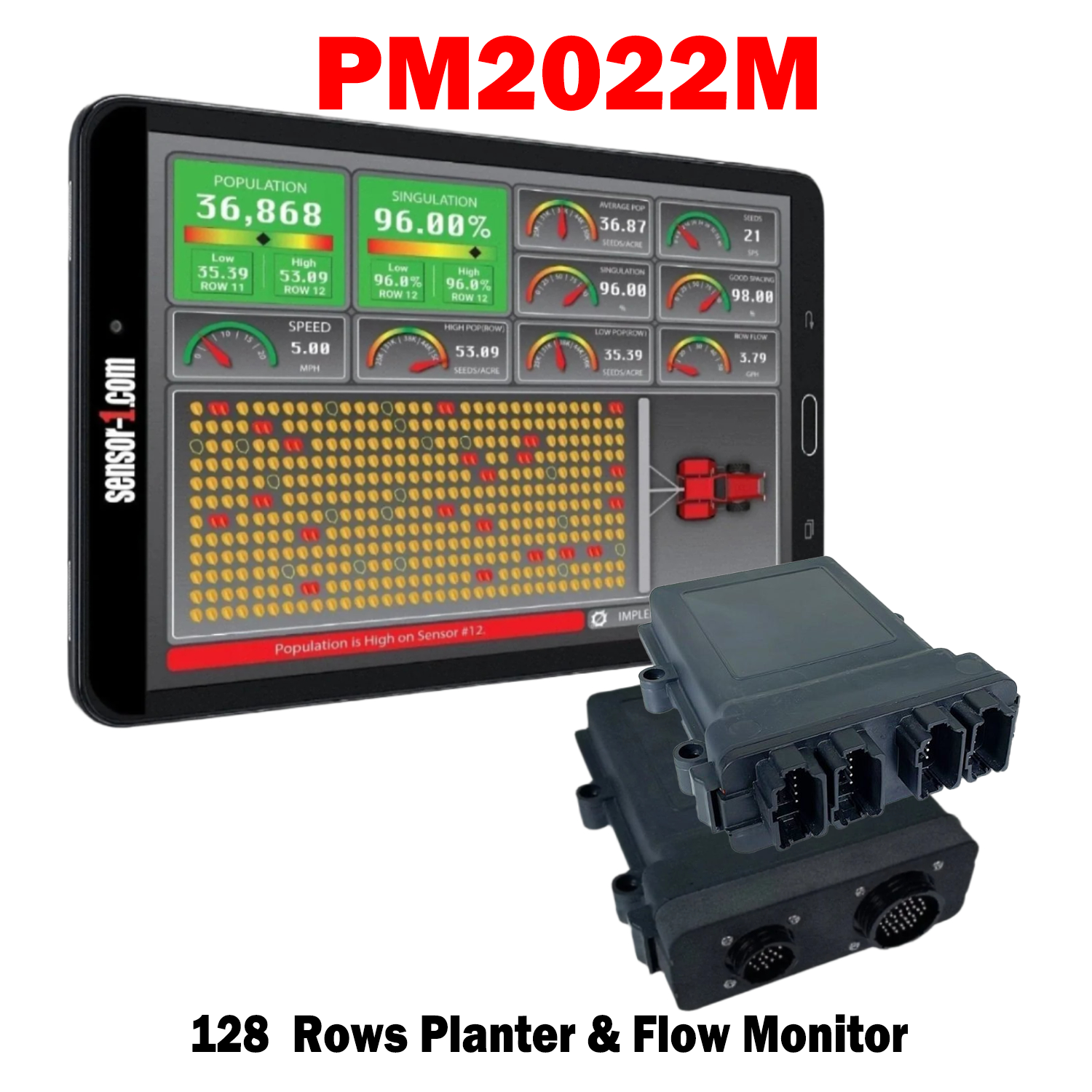

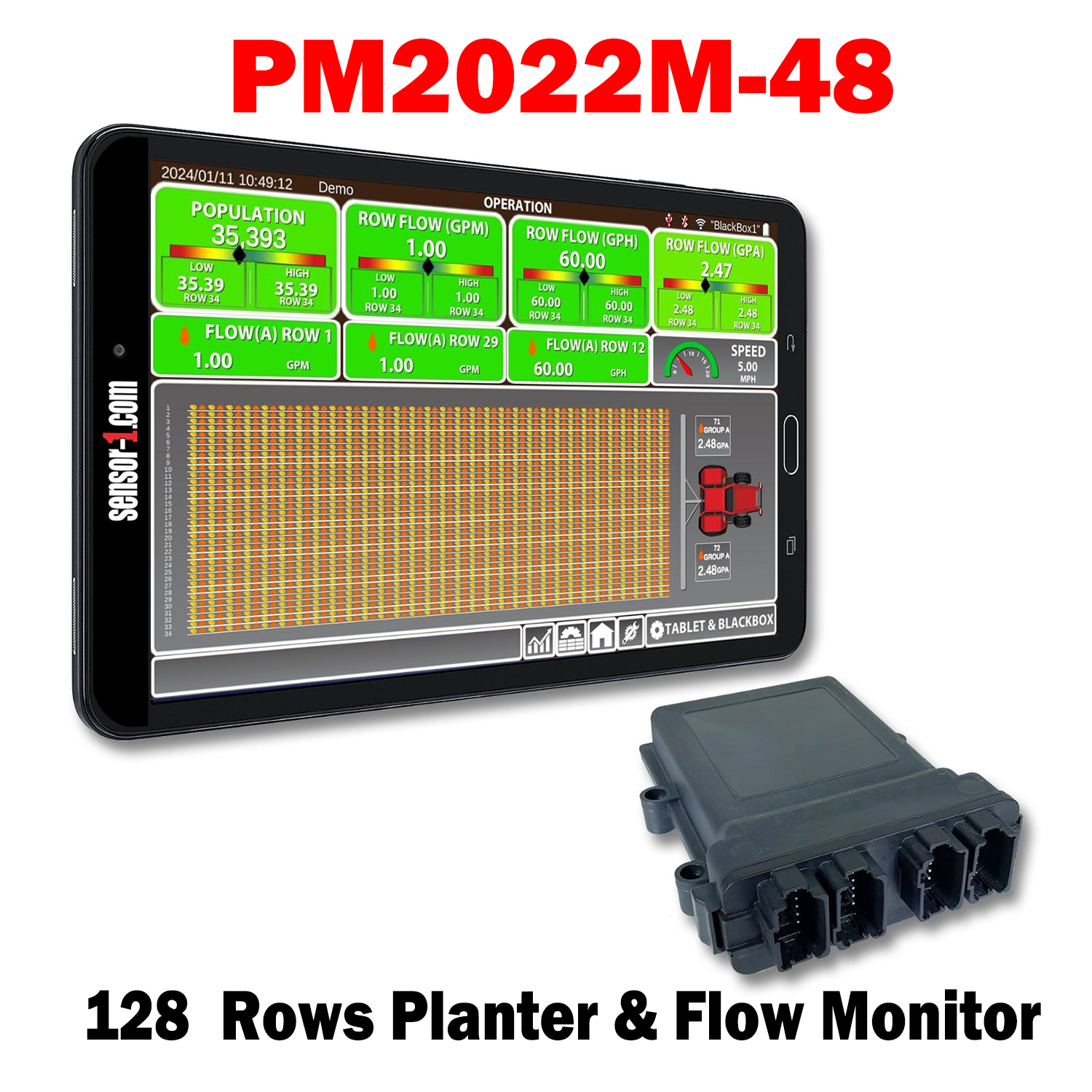

PM2022...The New Sensor-1 Monitor is innovation at your fingertips designed to simplify and innovate your planting operation. It features the capability of monitoring 1-128 rows and so much more.

Monitor Features:
  • 1 to 128 Row Monitoring System 10" Screen
  • Works with existing Dickey-john or John Deere Harnesses

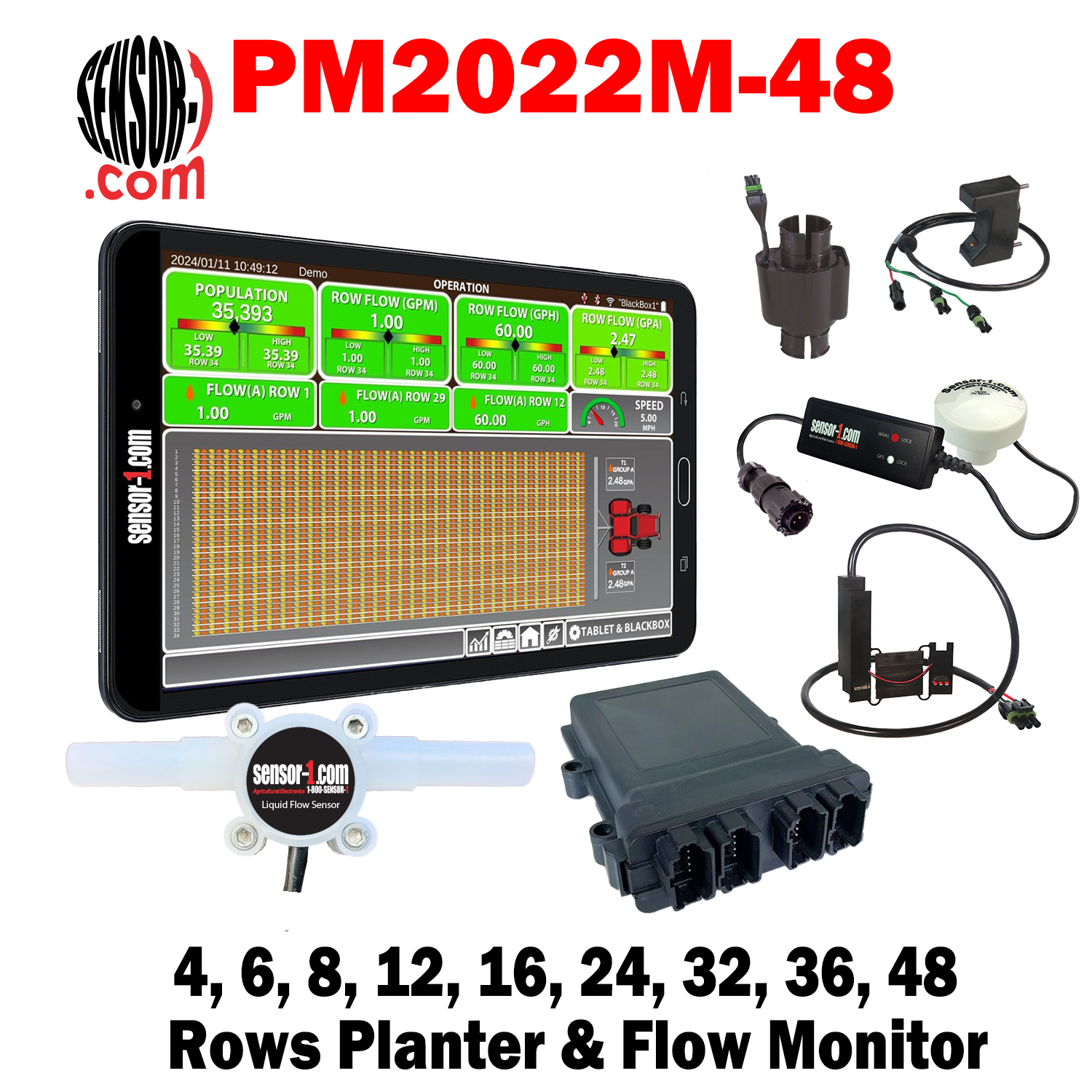

  • Seed Population or  Flow Sensors
  • 4 Different types of Liquid Flow Sensors Capability
  • Granular Fertilizer Flow
  • Hopper, Shaft, (RPM), Air Pressure, Sensor Capability

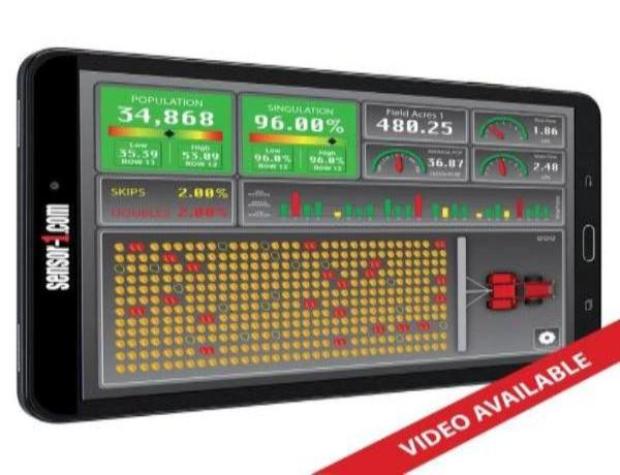

  • Display GPM, GPH, Seed Spacing, Acres/Hour, RPM, Field Acres,
  • Adjustable Alarm Volume

NOTE: If ordering just the Monitor know your pin out to match your harness!

Sensor-1 Monitor Pins out John Deere or Dickey-john

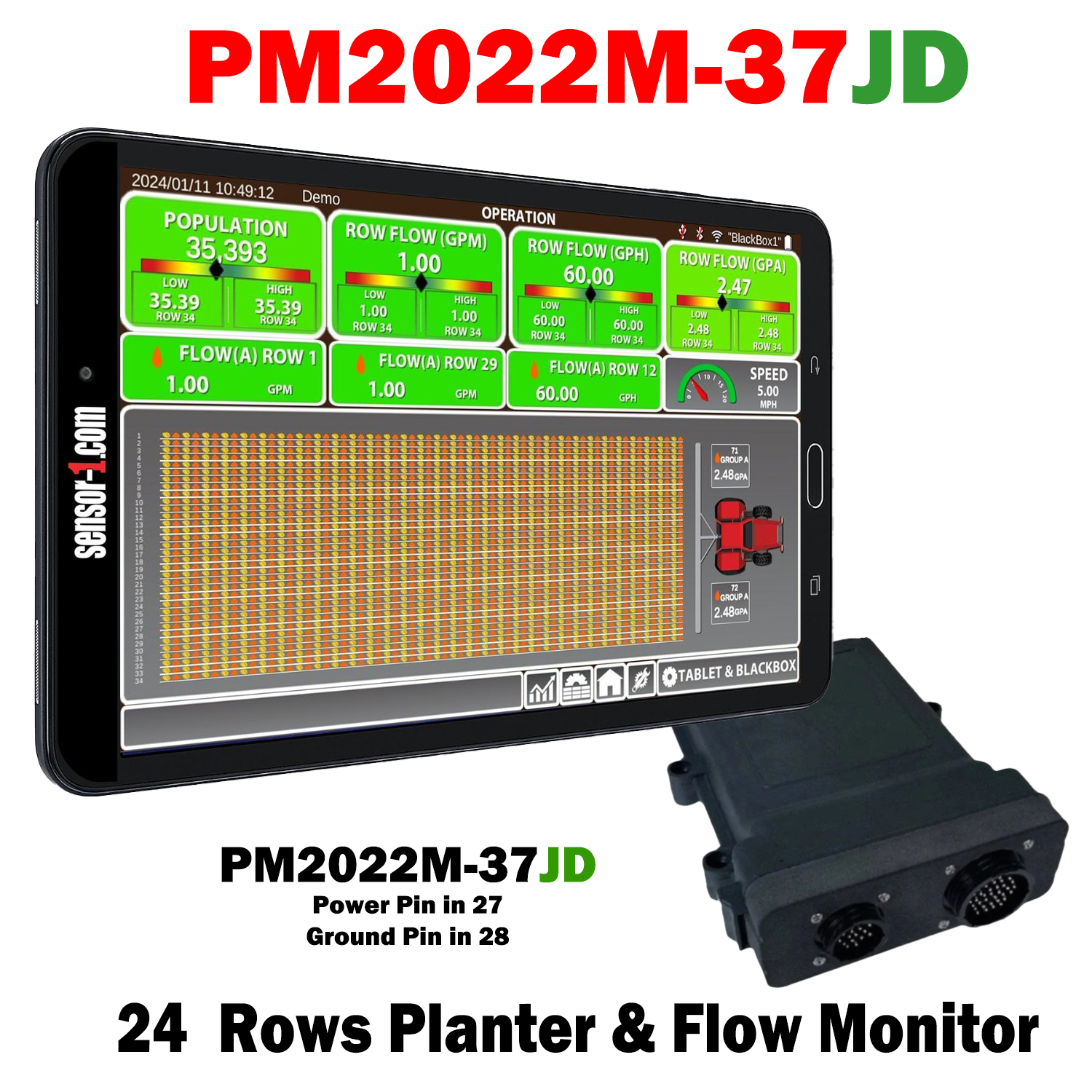

John Deere - Power is in Pin 27, Ground is in Pin 28

Dickey-john - (Under 12 Rows) Power is in pin 24, Ground is in Pin 28

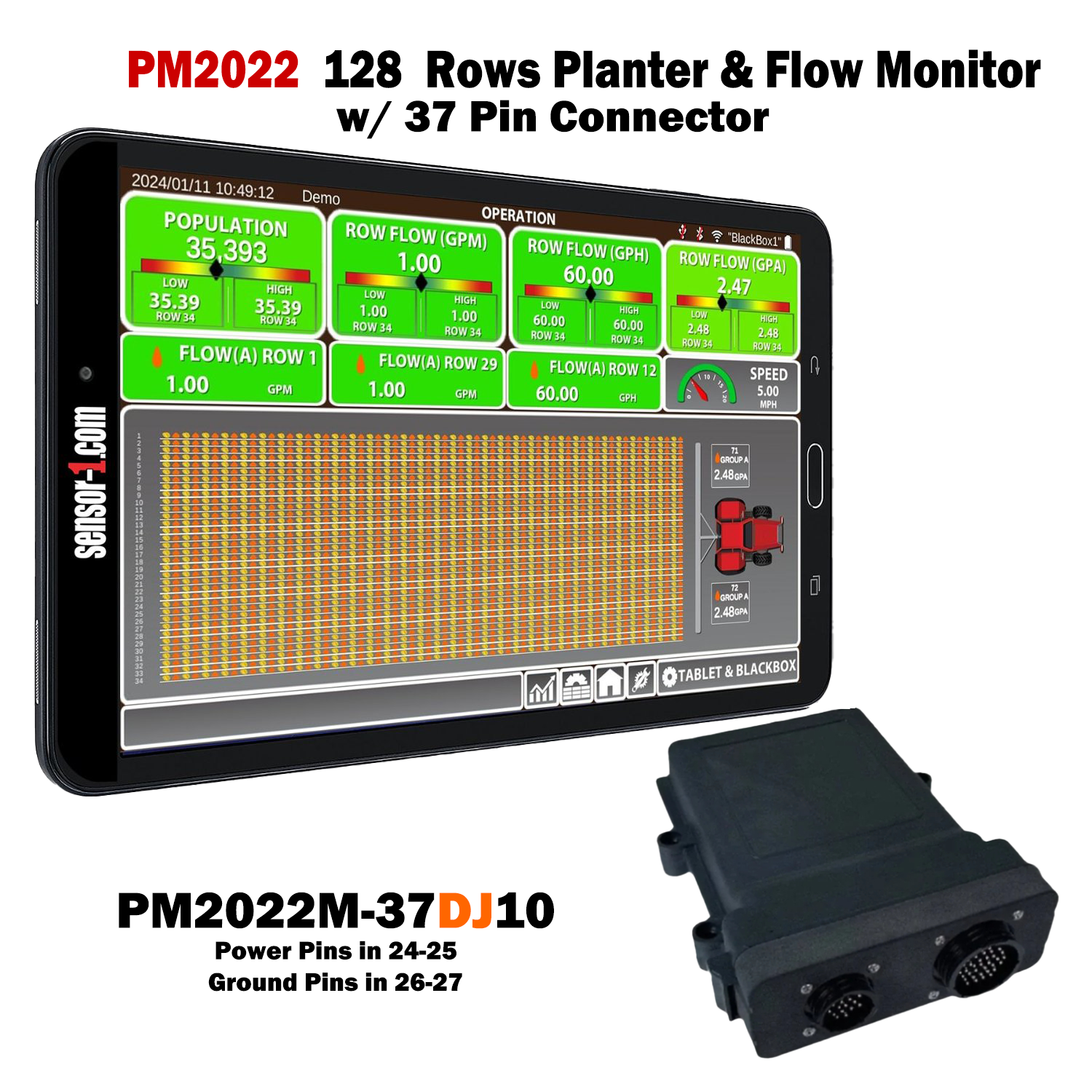

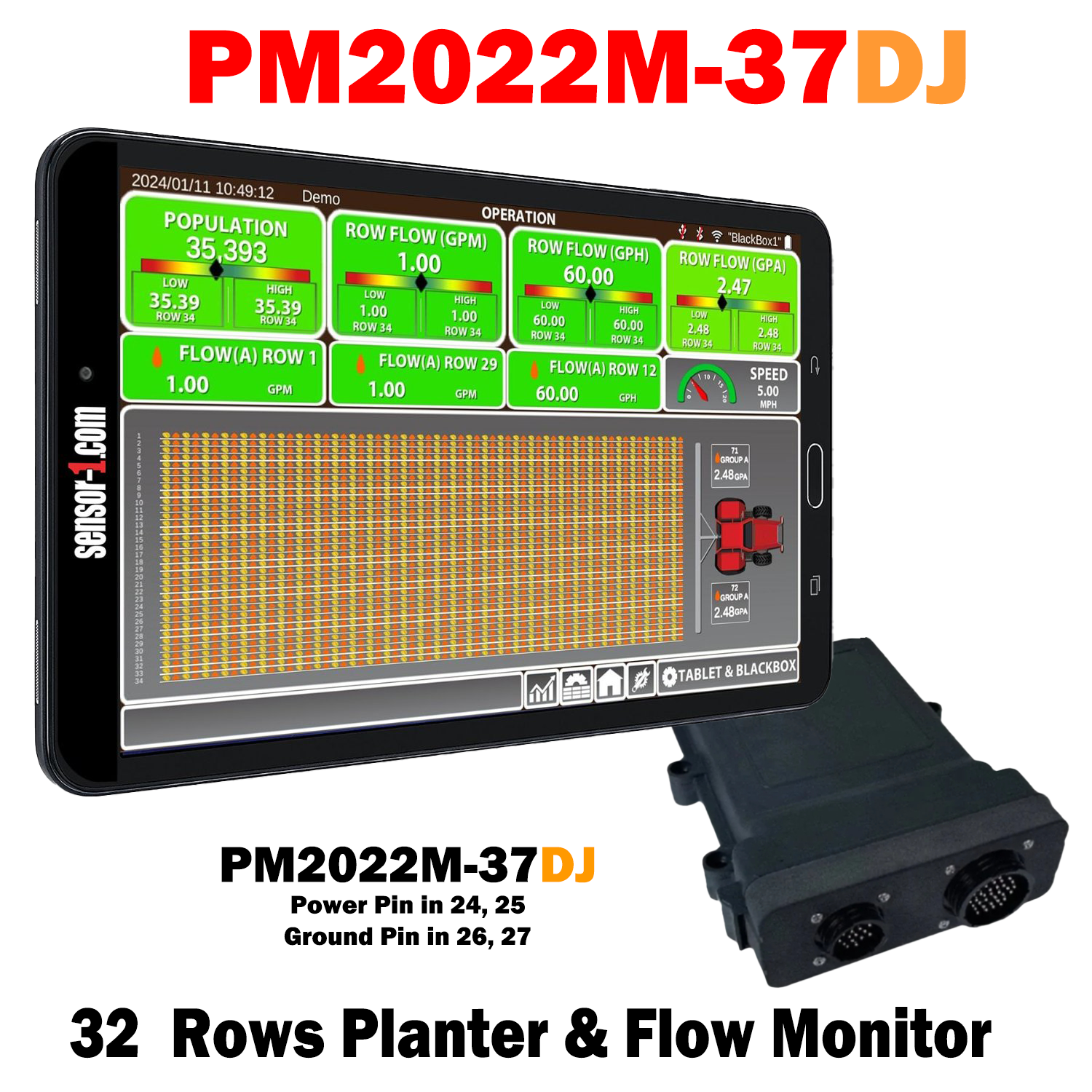

Dickey-john - (12 Rows and Over) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
