S1-ROWSHUTOFF

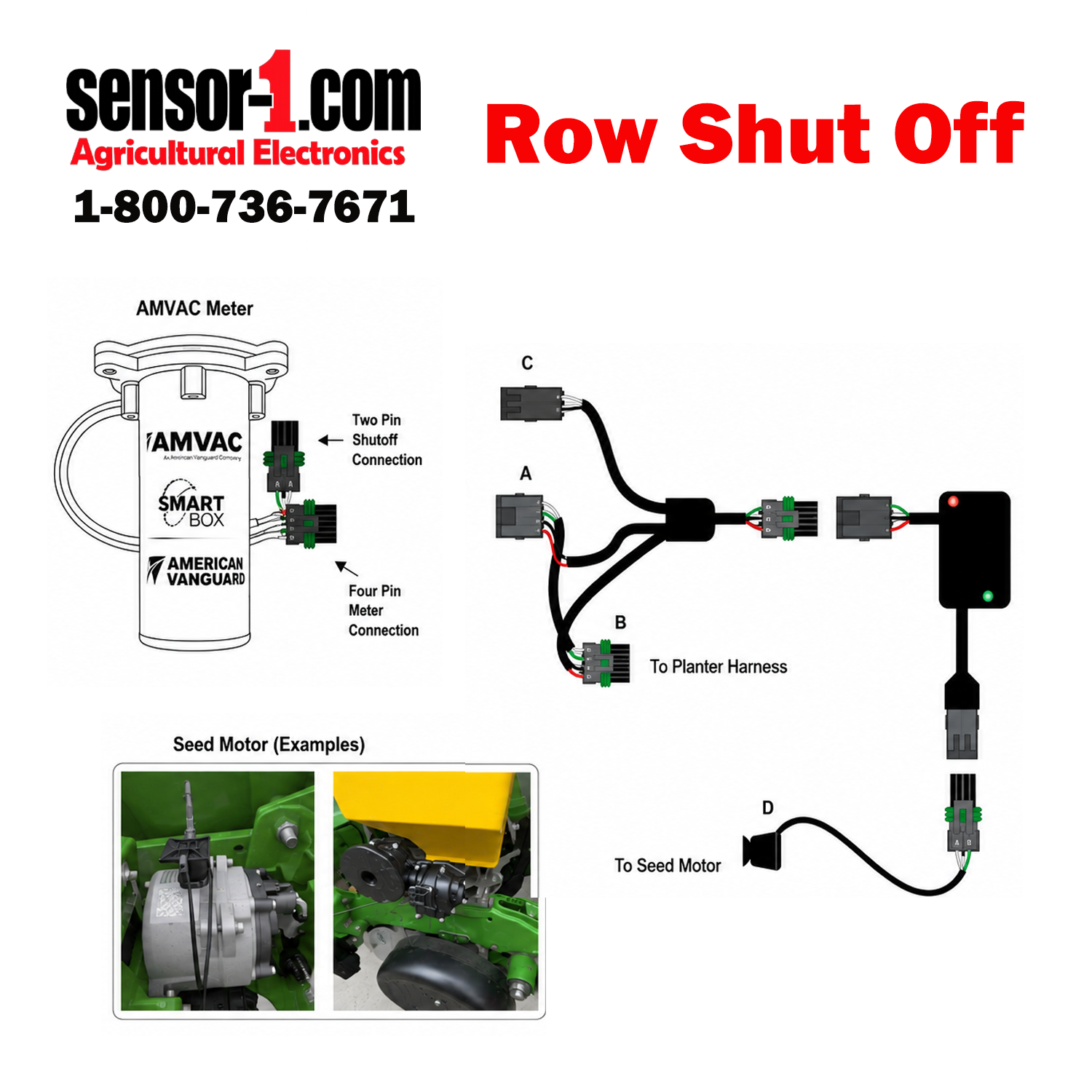

The S1-ROWSHUTOFF Row Shutoff Sensor is designed to detect when the AMVAC/seed motor is operating and provide the correct signal output for row shutoff control or monitoring. This board helps the planter system recognize motor activity and convert the motor signal into the required voltage logic for the planter harness or controller.

It supports both common signal styles:

1. Motor Detection: Detects when the seed motor or AMVAC meter motor turns on.
2. Active-High Output Conversion: Converts a 0-volt signal to approximately 14 volts when the motor turns on.
3. Active-Low / Inverted Output Conversion : Converts a 14-volt signal to 0 volts when the motor turns on.

This allows the board to work with systems that require either a rising voltage signal or an inverted falling voltage signal when motor activity is detected.
